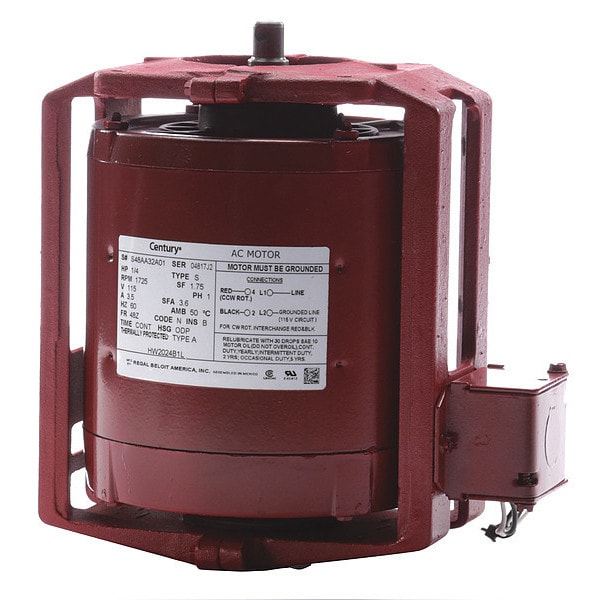

Century Water Circulator Motor, NEMA/IEC, CCW HW2024B1L - main

Water Circulator Motor, NEMA/IEC, CCW

  • Mfr # HW2024B1L

  • Zoro # G3449424

product price: $274.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Drip Proof
HP
1/4
RPM Range
1,701-1,800
Nameplate RPM
1,725
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HW2024B1L
Zoro #
G3449424
UPC #
-
Country of Origin
Mexico

Dimensions

Ring Dia.
2 1/2 in
Bolt Circle Dia.
5 in
Resilient Ring Dia.
2 1/2 in
Overall Length
8 5/16 in
Shaft Dia.
1/2 in
Length Less Shaft
7 7/16 in
Height
7 3/4 in
Shaft Length
13/16 in
Body Dia.
5.6 in
Bolt Circle Diameter
5 in
Body Diameter
5 9/16 in

Details

Item
Circulating Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Drip Proof
HP
1/4
RPM Range
1,701-1,800
Nameplate RPM
1,725
Frame
48Z
Voltage
115V AC
Phase
Single
Motor Mounting Type
Cradle Base
Replacement For
Mfr. No. HW2024B1
Full Load Amps
3.5
Motor Thermal Protection
Auto
Motor Shaft Rotation
CW/CCW
Hz
60
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Standards
CSA, UL Listed
Ins. Class
B
Motor Service Factor
1.75
Motor Bearings
Sleeve
Motor Sub Application
Water Circulator
Max. Ambient Temp.
50 Degrees C
Motor Application
Pump
Ring to Ring Center
7 in
Motor Frame Material
Steel
Usable @ 208V
No
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Weight
16 lb
Motor Shaft Design
Spot Drill
No. of Speeds
1
Usable @ 200V
No
Finish
Red
Conduit Box Position
F3
Nameplate Voltage
115V AC
Frequency
60 Hz
Number of Speeds
1
Maximum RPM
1,725 RPM
Horsepower
1/4 hp
Compatible with Pump Type
In-Line Circulating Pumps
Full Load Current
3.5 A
Maximum Ambient Temperature
122 Degrees F
Revolutions Per Minute - Maximum
1,725 RPM
Electrical Connection Type
Plug-In
Ambient Temperature - Maximum
122 Degrees F
Motor Frame Designation
48Z
Thermal Protection
Auto
Compatible with Brand
Century

Description

Circulating Pump Motor, Compatible with Brand Century, Compatible with Grainger Part Number Not Applicable, Compatible with Manufacturer Model Number Not Applicable, Compatible with Pump Type In-Line Circulating Pumps, Compatible with Series Not Applicable, Horsepower 1/4 hp, Maximum Ambient Temperature 122 Degrees F, Maximum RPM 1,725 RPM, Motor Enclosure Design Open Drip Proof, Motor Thermal Protection Auto, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Body Diameter 5 9/16 in
