Century

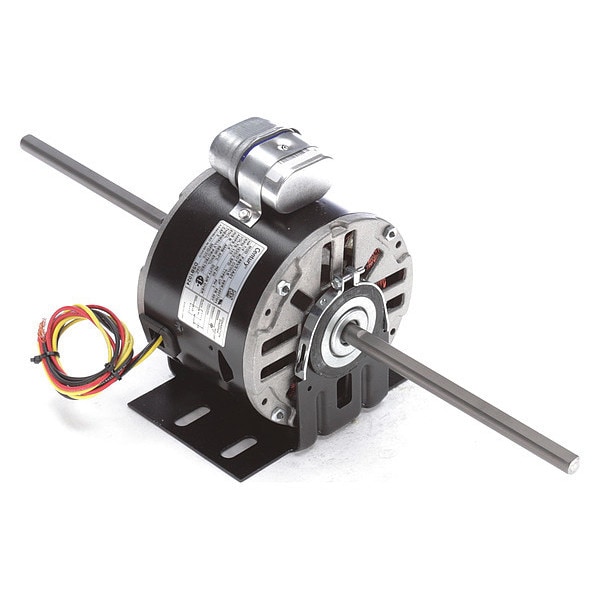

Room Air Cond Mtr, PSC, OAO, 1625 RPM

product price: $197.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Permanent Split Capacitor
  • HP 1/4
  • RPM Range 1,601-1,700
  • No. of Speeds 2
  • Voltage 115V AC
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Lead Length 25 in
Length Less Shaft 4 9/16 in
Body Dia. 5 5/8 in
Shaft Length 7 1/2 in
Resilient Ring Dia. 2 1/2 in
Overall Length 19 1/8 in

Details

Motor Design Permanent Split Capacitor
HP 1/4
RPM Range 1,601-1,700
No. of Speeds 2
Voltage 115V AC
Motor Shaft Rotation CCWLE
Frame 48Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Cradle Base
Ring to Ring Center 4 5/8 in
Hz 60 Hz
Nameplate RPM 1,625
Motor Application HVAC/R
Full Load Amps 2 A
Motor Sub Application Room Air Conditioner
Phase Single
Standards CSA Certified, UL Recognized
Ins. Class B
Motor Bearings Sleeve
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Thermal Protection Auto
Duty Continuous
Max. Ambient Temp. 40 Degrees C
Motor Shaft Design Flat
Motor Service Factor 1
Item Room Air Conditioner Motor
Capacitor Required Included
Motor Frame Material Steel
Motor Mounting Position Horizontal
Weight 15 lb
Usable @ 208V No
Includes Resilient Base
Number of Shafts 2
Usable @ 200V No
Duty Cycle Continuous
Conduit Box Position F3
Mounting Cradle Base
Application For Room Air Conditioners, Fan Coil Console Units, Packaged Heat Pumps and Other Double Shaft and Shaft-mounted Fan and Blower
Number of Speeds 2

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,625, No. of Speeds 2, Voltage 115V AC, Full Load Amps 2 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 25 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
