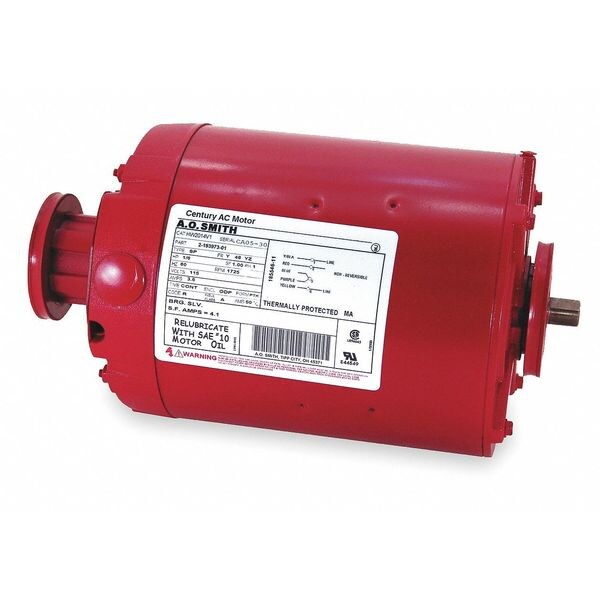

Water Circulator Motor, NEMA/IEC, Ring

CENTURY| Zoro #: G1529464| Mfr #: HW2014V1L

$135.19 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1529464 Mfr #: HW2014V1L
Motor Application: PumpNameplate RPM: 1725
Motor Sub Application: Water CirculatorMotor Enclosure Design: Open Dripproof
Item: Water Circulator MotorHz: 60
Replacement For: Mfr. No. HW2014V1Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Bearings: SleeveRPM Range: 1701-1800
Motor Shaft Rotation: CWLERing Dia.: 2-1/2"
Motor Thermal Protection: AutoMotor Mounting Type: Ring
Phase: 1Motor Design: Split-Phase
HP: 1/6Resilient Ring Dia.: 2-1/2"
Full Load Amps: 3.0Ring to Ring Center: 7-15/16"
Max. Ambient Temp.: 50 Degrees CFrame: 48Z
Ins. Class: BStandards: UL, CSA
Motor Service Factor: 1.35Voltage: 115
Country of Origin (subject to change): Mexico

Product Description

Water Circulator Motor, Split-Phase, Open Dripproof, 1/6 HP, 1725 Nameplate RPM, Frame 48Z, Voltage 115, 60 Hz, 1 Phase, Full Load Amps 3.0, Ring Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.35, Sleeve Motor Bearings, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CWLE, Ring Dia. 2-1/2 In., 7-15/16 In. Ring to Ring Center, Mfr. No. HW2014V1, Standards UL, CSA
