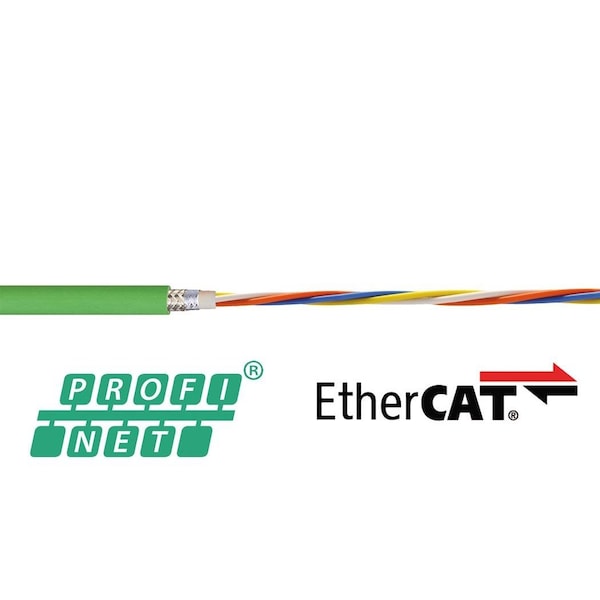

Bus Cable, Green, PUR, 50 V, Order by the Foot
Mfr # CF898-060
Zoro # G108259833
product price:Â
$
4.29
/ea
Sold in multiples of 3 for $12.87
Key Features
Length
Order by the Foot
Voltage
50 V
Jacket Color
Green
Shielding
Shielded
Conductor Material
Copper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF898-060
- Zoro #
- G108259833
- UPC #
- -
- Country of Origin
- Germany
- Item
- Bus Cable
- Voltage
- 50 V
- Jacket Color
- Green
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PUR
- Standards
- 2011/65/EU, 2014/35/EU, RoHS Compliant-II, TC RU C-DE. ME77.B.01559
- Impedance
- 100 ohm
- Resistance Properties
- Oil and Grease Resistant, UV/Sunlight Resistant
- Maximum Velocity - Unsupported
- 10 fps
- Includes Ground
- No
- Product Type
- Bus Cable
- Minimum Operating Temperature - Flexible
- -40 Degrees F
- Conductor Color Code
- Blue, Orange, White, Yellow
- Maximum Operating Temperature
- 158 Degrees F
- Conductor Grouping
- (2) Pair 22 AWG
- Cable Series
- CF898
- Minimum Operating Temperature - Fixed
- -58 Degrees F
- Bus System
- Profinet
- Maximum Acceleration
- 65.6 m/sq sec
- Series
- Chainflex
Description
Bus Cable, Bus System Profinet, Conductor Color Code Blue, Orange, White, Yellow, Conductor Grouping (2) Pair 22 AWG, Conductor Material Copper, Impedance 100 ohm, Includes Ground No, Jacket Color Green, Jacket Material PUR, Length Order by the Foot, Maximum Acceleration 65.6 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Unsupported 10 fps, Minimum Bend Radius Factor - E-Chain 15 x OD, Minimum Bend Radius Factor - Fixed 8 x OD
