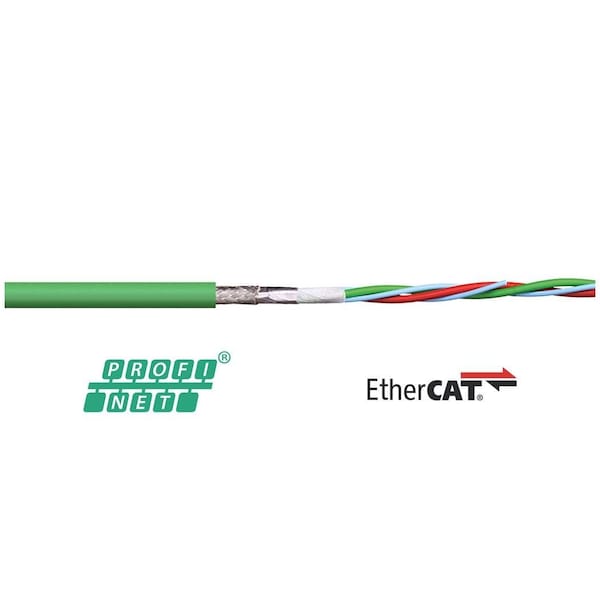

Bus Cable, Profinet, 22 AWG, Green, 50 V
Mfr # CFBUS-PUR-060
Zoro # G908259552
product price:Â
$
5.89
/ea
Sold in multiples of 2 for $11.78
Key Features
Length
Order by the Foot
Voltage
50 V
Jacket Color
Green
Shielding
Shielded
Conductor Material
Copper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CFBUS-PUR-060
- Zoro #
- G908259552
- UPC #
- -
- Country of Origin
- Germany
- Item
- Bus Cable
- Voltage
- 50 V
- Jacket Color
- Green
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PUR
- Standards
- 2011/65/EU, 2014/35/EU, CE 2014/35, RoHS Compliant-II, TC RU C-DE. ME77.B.01218, VDW DESINA
- Maximum Velocity - Unsupported
- 10 fps
- Cable Series
- CFBUS-PUR
- Impedance
- 100 ohm
- Maximum Acceleration
- 98.4 m/sq sec
- Conductor Grouping
- (2) Pair 22 AWG
- Maximum Operating Temperature
- 158 Degrees F
- Bus System
- Profinet
- Includes Ground
- No
- Maximum Velocity - Supported
- 7 fps
- Resistance Properties
- Bending Resistance, Hydrolysis Resistant, Antimicrobial, Oil and Grease Resistant, UV/Sunlight Resistant
- Minimum Operating Temperature - Flexible
- -40 Degrees F
- Product Type
- Bus Cable
- Conductor Color Code
- Blue, Orange, White, Yellow
- Minimum Operating Temperature - Fixed
- -58 Degrees F
- Series
- Chainflex
Description
Bus Cable, Bus System Profinet, Conductor Color Code Blue, Orange, White, Yellow, Conductor Grouping (2) Pair 22 AWG, Conductor Material Copper, Impedance 100 ohm, Includes Ground No, Jacket Color Green, Jacket Material PUR, Length Order by the Foot, Maximum Acceleration 98.4 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Supported 7 fps, Maximum Velocity - Unsupported 10 fps, Minimum Bend Radius Factor - E-Chain 12.5 x OD, Minimum Bend Radius Factor - Fixed 7 x OD
