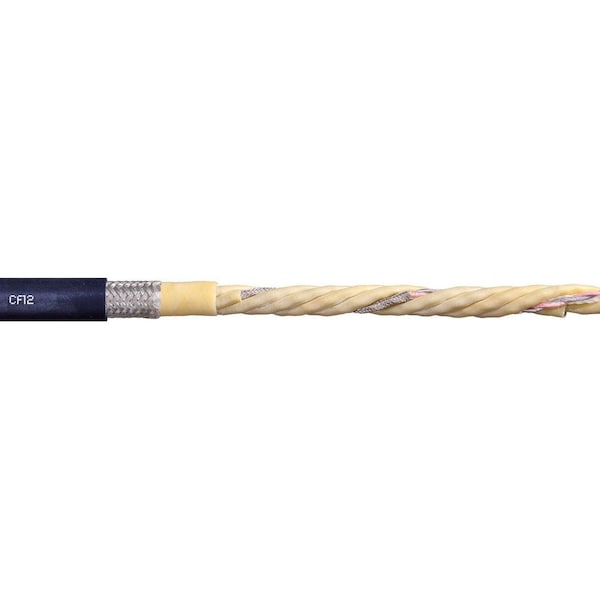

Data Cable, 20 AWG, Blue, TPR, 300 V
- Mfr # CF12-05-08-02
- Zoro # G008259575
product price:Â
$
30.89
/ea
Key Features
Number of Conductors
8
Length
Order by the Foot
Voltage
300V
Jacket Color
Blue
Shielding
Shielded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF12-05-08-02
- Zoro #
- G008259575
- UPC #
- -
- Country of Origin
- Germany
- Item
- Data Cable
- Number of Conductors
- 8
- Voltage
- 300V
- Jacket Color
- Blue
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- TPR
- Standards
- 2011/65/EU (RoHS Compliant-II), CE 2014/35/EU, CF9.15.07 ISO Class 1 (Outer Jacket Material), DIN EN 60811-404, EAC TC RU C-DE. ME77.B.01254, EN 60754, IPA 14644-1, PV 3.10.7 Status 1992, VDMA 24568 with Plantocut 8 S-MB by DEA
- Maximum Velocity - Supported
- 20 fps
- Minimum Operating Temperature - Fixed
- -48 Degrees F
- Maximum Velocity - Unsupported
- 33 fps
- Conductor Color Code
- Black/White
- Resistance Properties
- Oil and Grease Resistant, UV/Sunlight Resistant
- Product Type
- Data Cable
- Maximum Operating Temperature
- 212 Degrees F
- Maximum Acceleration
- 328.1 m/sq sec
- Conductor Configuration
- Shielded Twisted Pair
- Cable Series
- CF12
- Minimum Operating Temperature - Flexible
- -31 Degrees F
- Series
- Chainflex
- Includes Ground
- No
Description
Data Cable, Conductor Color Code Black/White, Conductor Configuration Shielded Twisted Pair, Conductor Material Copper, Conductor Size 20 AWG, Includes Ground No, Jacket Color Blue, Jacket Material TPR, Length Order by the Foot, Maximum Acceleration 328.1 m/sq sec, Maximum Operating Temperature 212 Degrees F, Maximum Velocity - Supported 20 fps, Maximum Velocity - Unsupported 33 fps, Minimum Bend Radius Factor - E-Chain 10 x OD, Minimum Bend Radius Factor - Fixed 5 x OD
