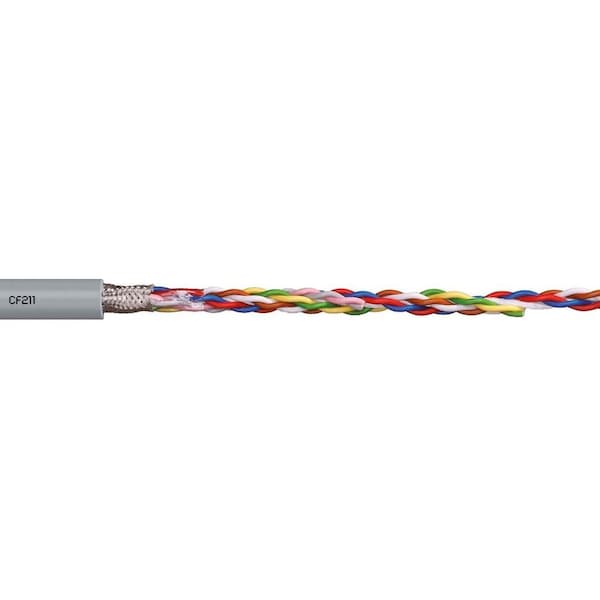

Data Cable, 20 AWG, Gray, PVC, 300 V
Mfr # CF211-05-05-02
Zoro # G508260026
product price:Â
$
9.95
/ea
Key Features
Number of Conductors
5
Length
Order by the Foot
Voltage
300 V
Jacket Color
Gray
Shielding
Shielded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF211-05-05-02
- Zoro #
- G508260026
- UPC #
- -
- Country of Origin
- Germany
- Item
- Data Cable
- Number of Conductors
- 5
- Voltage
- 300 V
- Jacket Color
- Gray
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PVC
- Standards
- 2011/65/EU (RoHS Compliant-II), CE 2014/35/EU, CEI 20-35, CF240.02.24 ISO Class 1 (Outer Jacket Material), CSA, CTP C-DE.PB49.B.00416, EAC TC RU C-DE. ME77.B.01254, IPA 14644-1, NFPA 79-2012 Chapter 12.9, UL Listed
- Cable Series
- CF211
- Conductor Color Code
- In Accordance with DIN 47100
- Resistance Properties
- Flame Retardant, Oil and Grease Resistant
- Conductor Configuration
- Twisted Pair
- Minimum Operating Temperature - Flexible
- 23 Degrees F
- Maximum Velocity - Unsupported
- 16 fps
- Product Type
- Data Cable
- Includes Ground
- Yes
- Minimum Operating Temperature - Fixed
- 5 Degrees F
- Maximum Velocity - Supported
- 10 fps
- Maximum Operating Temperature
- 158 Degrees F
- Maximum Acceleration
- 164 m/sq sec
- Series
- Chainflex
Description
Data Cable, Conductor Color Code In Accordance with DIN 47100, Conductor Configuration Twisted Pair, Conductor Material Copper, Conductor Size 20 AWG, Includes Ground Yes, Jacket Color Gray, Jacket Material PVC, Length Order by the Foot, Maximum Acceleration 164 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Supported 10 fps, Maximum Velocity - Unsupported 16 fps, Minimum Bend Radius Factor - E-Chain 7.5 x OD, Minimum Bend Radius Factor - Fixed 4 x OD
