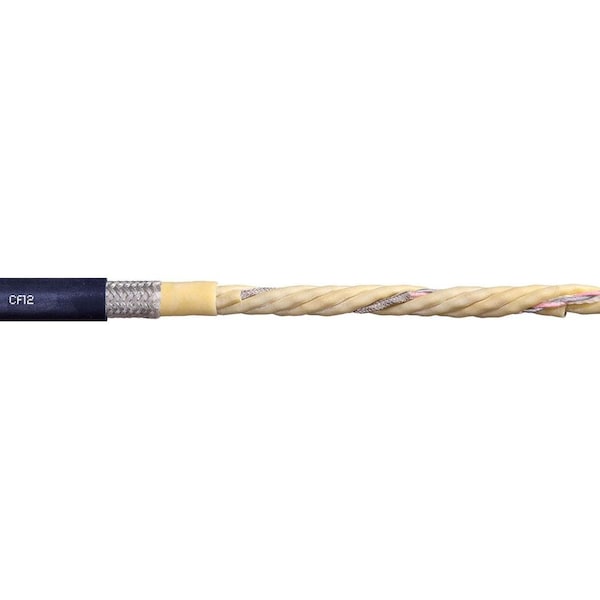

Data Cable, 24 AWG, Blue, TPR, 300 V
Mfr # CF12-02-04-02
Zoro # G108259512
product price:Â
$
16.19
/ea
Key Features
Number of Conductors
4
Length
Order by the Foot
Voltage
300 V
Jacket Color
Blue
Shielding
Shielded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF12-02-04-02
- Zoro #
- G108259512
- UPC #
- -
- Country of Origin
- Germany
- Item
- Data Cable
- Number of Conductors
- 4
- Voltage
- 300 V
- Jacket Color
- Blue
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- TPR
- Standards
- 2011/65/EU (RoHS Compliant-II), CE 2014/35/EU, CF9.15.07 ISO Class 1 (Outer Jacket Material), DIN EN 60811-404, EAC TC RU C-DE. ME77.B.01254, EN 60754, IPA 14644-1, PV 3.10.7 Status 1992, VDMA 24568 with Plantocut 8 S-MB by DEA
- Resistance Properties
- Oil and Grease Resistant, UV/Sunlight Resistant
- Conductor Color Code
- In Accordance with DIN 47100
- Maximum Operating Temperature
- 212 Degrees F
- Conductor Configuration
- Shielded Twisted Pair
- Minimum Operating Temperature - Fixed
- -48 Degrees F
- Product Type
- Data Cable
- Minimum Operating Temperature - Flexible
- -31 Degrees F
- Cable Series
- CF12
- Maximum Acceleration
- 328.1 m/sq sec
- Maximum Velocity - Supported
- 20 fps
- Maximum Velocity - Unsupported
- 33 fps
- Series
- Chainflex
- Includes Ground
- No
Description
Data Cable, Conductor Color Code In Accordance with DIN 47100, Conductor Configuration Shielded Twisted Pair, Conductor Material Copper, Conductor Size 24 AWG, Includes Ground No, Jacket Color Blue, Jacket Material TPR, Length Order by the Foot, Maximum Acceleration 328.1 m/sq sec, Maximum Operating Temperature 212 Degrees F, Maximum Velocity - Supported 20 fps, Maximum Velocity - Unsupported 33 fps, Minimum Bend Radius Factor - E-Chain 10 x OD, Minimum Bend Radius Factor - Fixed 5 x OD
