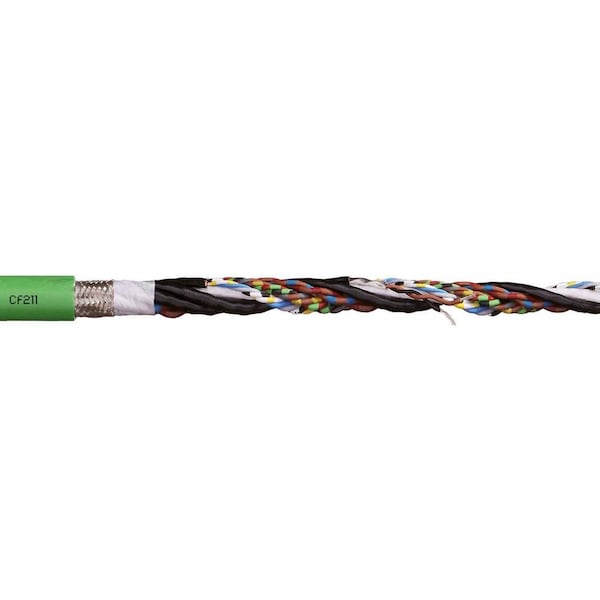

MeasuringSystemCable, Green, 0.3in-OD, 50V
Mfr # CF211-028
Zoro # G608259906
product price:Â
$
6.29
/ea
Sold in multiples of 2 for $12.58
Key Features
Length
Order by the Foot
Voltage
50 V
Jacket Color
Green
Shielding
Shielded
Conductor Material
Copper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF211-028
- Zoro #
- G608259906
- UPC #
- -
- Country of Origin
- Germany
- Item
- Measuring System Cable
- Voltage
- 50 V
- Jacket Color
- Green
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PVC
- Standards
- CE, CEI 20-35, CSA AWM, CTP C-DE.PB49.B.00416, DESINA VDW, DNV Type Testing 61 935-14 HH, EAC TC RU C-DE. ME77.B.01559, NFPA 79-2012 Chapter 12.9, UL Listed
- Resistance Properties
- Bending Resistance, Oil and Grease Resistant
- Maximum Velocity - Supported
- 10 fps
- Maximum Velocity - Unsupported
- 16 fps
- Minimum Operating Temperature - Fixed
- 5 Degrees F
- Product Type
- Measuring System Cable
- Maximum Operating Temperature
- 158 Degrees F
- Minimum Operating Temperature - Flexible
- 23 Degrees F
- Cable Series
- CF211
- Conductor Color Code
- Black, Blue, Green, Pink, Red, Yellow
- Maximum Acceleration
- 98.4 m/sq sec
- Conductor Grouping
- (2) Pair 26 AWG/(2) 22 AWG
- Includes Ground
- No
- Series
- Chainflex
Description
Measuring System Cable, Conductor Color Code Black, Blue, Green, Pink, Red, Yellow, Conductor Grouping (2) Pair 26 AWG/(2) 22 AWG, Conductor Material Copper, Includes Ground No, Jacket Color Green, Jacket Material PVC, Length Order by the Foot, Maximum Acceleration 98.4 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Supported 10 fps, Maximum Velocity - Unsupported 16 fps, Minimum Bend Radius Factor - E-Chain 10 x OD, Minimum Bend Radius Factor - Fixed 5 x OD
