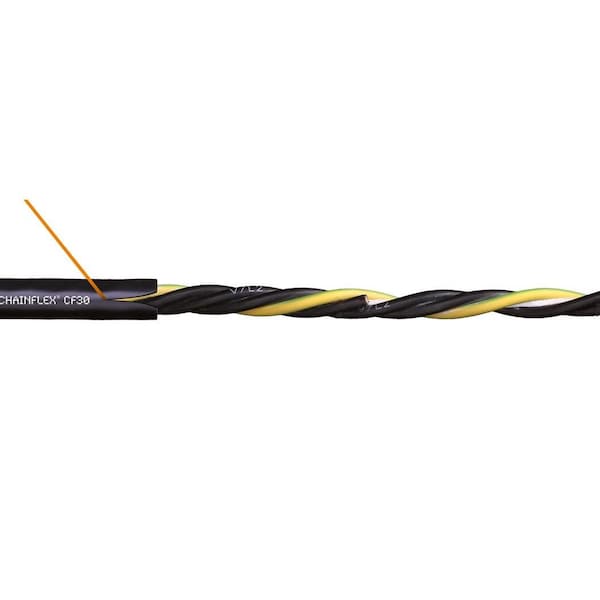

Motor Cable, 2 AWG, Black, PVC, 1000 V
Mfr # CF30-350-04
Zoro # G408259458
product price:Â
$
52.19
/ea
Key Features
Number of Conductors
4
Length
Order by the Foot
Voltage
1,000 V
Jacket Color
Black
Shielding
Unshielded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF30-350-04
- Zoro #
- G408259458
- UPC #
- -
- Country of Origin
- Germany
- Item
- Motor Cable
- Number of Conductors
- 4
- Voltage
- 1,000 V
- Jacket Color
- Black
- Shielding
- Unshielded
- Jacket Material
- PVC
- Standards
- CE 2014/35/EU, CEI 20-35, CF27.07.05.02.01.D ISO Class 1 (Outer Jacket Material), CSA, CTP C-DE.PB49.B.00420, EAC TC RU C DE.ME77.B.01255, IPA 14644-1, 2011/65/EU (RoHS Compliant-II), UL Listed
- Maximum Velocity - Unsupported
- 33 fps
- Maximum Acceleration
- 262.5 m/sq sec
- Resistance Properties
- Oil and Grease Resistant, UV/Sunlight Resistant
- Minimum Operating Temperature - Fixed
- 5 Degrees F
- Conductor Color Code
- Black/White, Green/Yellow
- Minimum Operating Temperature - Flexible
- 23 Degrees F
- Includes Ground
- Yes
- Cable Series
- CF30
- Maximum Operating Temperature
- 158 Degrees F
- Maximum Velocity - Supported
- 16 fps
- Product Type
- Motor Cable
- Series
- Chainflex
- Conductor Configuration
- Single
Description
Motor Cable, Conductor Color Code Black/White, Green/Yellow, Conductor Configuration Single, Conductor Size 2 AWG, Includes Ground Yes, Jacket Color Black, Jacket Material PVC, Length Order by the Foot, Maximum Acceleration 262.5 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Supported 16 fps, Maximum Velocity - Unsupported 33 fps, Minimum Bend Radius Factor - E-Chain 7.5 x OD, Minimum Bend Radius Factor - Fixed 4 x OD, Minimum Bend Radius Factor - Flexible 6 x OD
