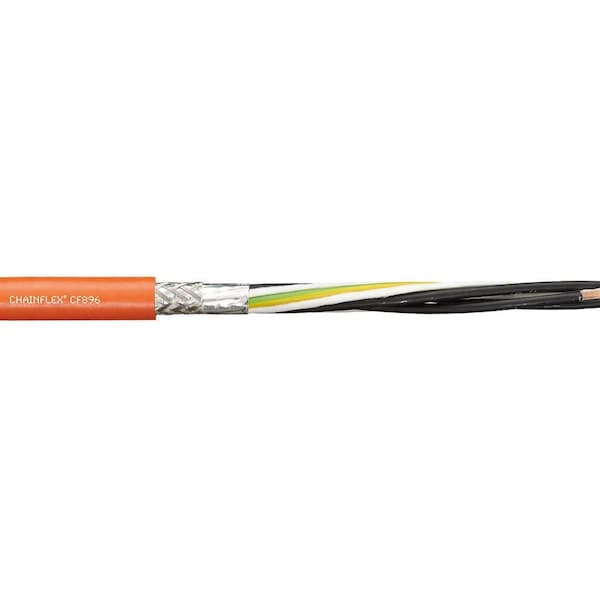

Motor Cable, 4 C, Orange, PUR, 1,000 V, Order by the Foot
- Mfr # CF896-07-04
- Zoro # G708259752
product price:Â
$
2.96
/ea
Sold in multiples of 4 for $11.84
Key Features
Number of Conductors
4
Length
Order by the Foot
Voltage
1,000 V
Jacket Color
Orange
Shielding
Shielded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CF896-07-04
- Zoro #
- G708259752
- UPC #
- -
- Country of Origin
- Germany
- Item
- Motor Cable
- Number of Conductors
- 4
- Voltage
- 1,000 V
- Jacket Color
- Orange
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- PUR
- Standards
- CE 2014/35/EU, CSA, CTP C-DE. PB49.B.00450, EAC TC RU C-DE. ME77.B.01561, 2011/65/EU (RoHS Compliant-II), UL Listed
- Resistance Properties
- Oil and Grease Resistant, UV/Sunlight Resistant
- Maximum Velocity - Unsupported
- 10 fps
- Maximum Acceleration
- 65.6 m/sq sec
- Includes Ground
- Yes
- Cable Series
- CF896
- Minimum Operating Temperature - Flexible
- -40 Degrees F
- Conductor Color Code
- Black/White, Green/Yellow
- Minimum Operating Temperature - Fixed
- -58 Degrees F
- Maximum Operating Temperature
- 176 Degrees F
- Product Type
- Motor Cable
- Series
- Chainflex
- Conductor Configuration
- Single
Description
Motor Cable, Conductor Color Code Black/White, Green/Yellow, Conductor Configuration Single, Conductor Material Copper, Conductor Size 18 AWG, Includes Ground Yes, Jacket Color Orange, Jacket Material PUR, Length Order by the Foot, Maximum Acceleration 65.6 m/sq sec, Maximum Operating Temperature 176 Degrees F, Maximum Velocity - Unsupported 10 fps, Minimum Bend Radius Factor - E-Chain 15 x OD, Minimum Bend Radius Factor - Fixed 8 x OD, Minimum Bend Radius Factor - Flexible 12 x OD
