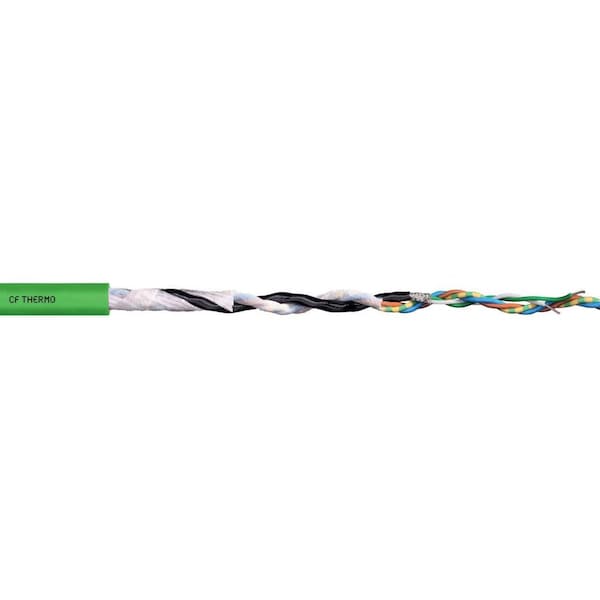

ThermocoupleCable, TypeJ, Pair24AWG, Black
- Mfr # CFTHERMO-J-001
- Zoro # G408260027
product price:Â
$
10.65
/ea
Key Features
Length
Order by the Foot
Voltage
300 V
Jacket Color
Black
Shielding
Shielded
Conductor Material
Iron/Constantan
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CFTHERMO-J-001
- Zoro #
- G408260027
- UPC #
- -
- Country of Origin
- Germany
- Item
- Thermocouple Cable
- Voltage
- 300 V
- Jacket Color
- Black
- Shielding
- Shielded
- Conductor Material
- Iron/Constantan
- Jacket Material
- PUR
- Standards
- CE 2014/35/EU, CTP C-DE.PB49.B.00416, EAC TC RU C-DE. ME77.B.01254, ISO Class 1 CF27.07.05.02.01.D IPA 14644-1, Lead Free 2011/65/EU, RoHS Compliant-II
- Minimum Operating Temperature - Fixed
- -58 Degrees F
- Cable Series
- CFTHERMO
- Conductor Grouping
- Pair 24 AWG
- Conductor Color Code
- Black, White
- Maximum Operating Temperature
- 176 Degrees F
- Product Type
- Thermocouple Cable
- Maximum Acceleration
- 20 m/sq sec
- Minimum Operating Temperature - Flexible
- -40 Degrees F
- Maximum Velocity - Supported
- 3 fps
- Maximum Velocity - Unsupported
- 7 fps
- Thermocouple Type
- Type J
- Resistance Properties
- Coolant Resistant, Antimicrobial, Notch Resistance, Oil and Grease Resistant, UV/Sunlight Resistant
- Series
- Chainflex
Dimensions
- Length
- Order by the Foot
- Overall Length
- Order by the Foot
- Minimum Bend Radius Factor - Flexible
- 10 x OD
- Outside Diameter
- 0.22 in
- Minimum Bend Radius Factor - E-Chain
- 12.5 x OD
- Minimum Bend Radius Factor - Fixed
- 5.0 x OD
- Nominal Outside Diameter
- 0.22 in
- Wire Rope Length
- Order by the Foot
Description
Thermocouple Cable, Conductor Color Code Black, White, Conductor Grouping Pair 24 AWG, Conductor Material Iron/Constantan, Jacket Color Black, Jacket Material PUR, Length Order by the Foot, Maximum Acceleration 20 m/sq sec, Maximum Operating Temperature 176 Degrees F, Maximum Velocity - Supported 3 fps, Maximum Velocity - Unsupported 7 fps, Minimum Bend Radius Factor - E-Chain 12.5 x OD, Minimum Bend Radius Factor - Fixed 5.0 x OD, Minimum Bend Radius Factor - Flexible 10 x OD
