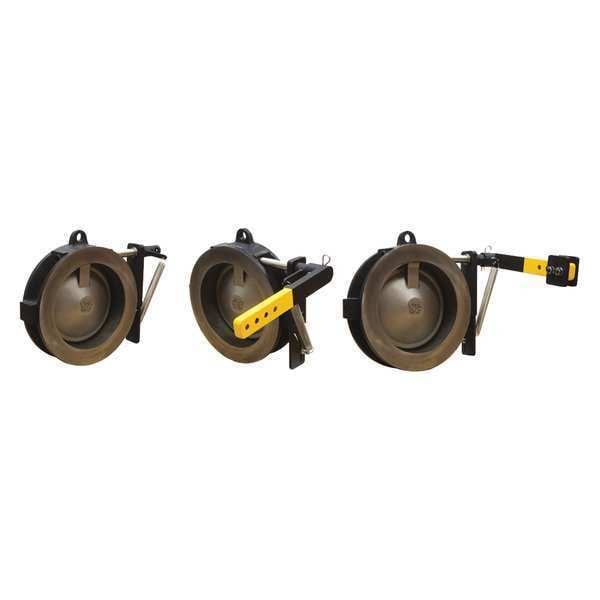

4" Flanged Ductile Iron Spring Spring Wafer Check Valve

  • Mfr # 4SDX12-LTBS-P1/4

  • Zoro # G7344368

product price:
$
439.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
4"
Connection Type
Flanged
Body Material
Ductile Iron
Max. Pressure
250 psi @ 100 Degrees F
Mounting Position
Vertical or Horizontal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4SDX12-LTBS-P1/4
Zoro #
G7344368
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
4"
Overall Height
6-5/8"
Length
2-1/4"
Size
4"
Width
6-7/8"
Pipe or Tube Size - Check Valves
4"
Overall Length
6.88 in
Pipe or Tube Size
4 in
Connection Size - Side 2
4 in
Height - Cap to Inlet Center
1 1/2 in
Connection Size - Side 1
4 in
Nominal Valve Size
4 in
Wire Rope Length
6.88 in

Details

Connection Type
Flanged
Body Material
Ductile Iron
Max. Pressure
250 psi @ 100 Degrees F
Mounting Position
Vertical or Horizontal
Max. Water Pressure - Valves
250 psi @ 100 Degrees F
Standards
ASTM A395 60-14-18
Sub-Category
Iron
Cracking Pressure
0.29 psi
Max. Temp. - Valves
250 Degrees F
Item - Check Valves
Check Valve
Max. Water Pressure
250 psi @ 100 Degrees F
Cap to Inlet Center
1-1/2"
Max. Temp.
500 Degrees F
Spring Material
316 Stainless Steel
Mounting Orientation - Check Valves
Horizontal, Vertical
Seal Material
Buna-N
Connection Type - Check Valves
Flange x Flange
Max. Steam Pressure - Valves
Not Rated
Mechanism and Body Design
Inline Wafer
Body Material - Valves
Ductile Iron
Item
External Spring Check Valve
Cracking Pressure - Check Valves
0.184 psi
Seal Material - Check Valves
Buna-N
Material of Construction
Ductile Iron
Compliance
ASME B16.5, ASME B 16.47, API 598, API 594 and 598, MSS SP-6, MSS SP-25, MSS SP-55
Spring Material - Check Valves
316 Stainless Steel
Seat Material
Buna-N
Flow Design
Single
Seat Material - Check Valves
Buna-N
Application - Valves
Process Piping
Flow
430 gpm
Mounting Orientation
Horizontal, Vertical
Maximum Pressure - Operating
250 psi
Valve Body Style
Inline
For Media
Fluids
Check Mechanism
Swing
Check Mechanism Material
304 Stainless Steel
Vacuum Service Rating
Not Rated
ANSI Flange Class
Class 125
Includes Counterweight
No Counterweight
Connection Type - Side 1
Wafer
Silent Check
Standard
Operating Temperature - Minimum
-70 Degrees F
Operating Temperature - Maximum
250 Degrees F
Maximum Pressure - Steam
Not Rated
3-A Standard Compliance
Not Rated
Connection Type - Side 2
Wafer
Valve Series
SDX

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Wafer, Body Material - Valves Ductile Iron, Pipe or Tube Size 4 in, Connection Type Flange x Flange, Cracking Pressure 0.184 psi, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. - Valves 250 Degrees F, Max. Water Pressure - Valves 250 psi @ 100 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material Buna-N, Spring Material 316 Stainless Steel
