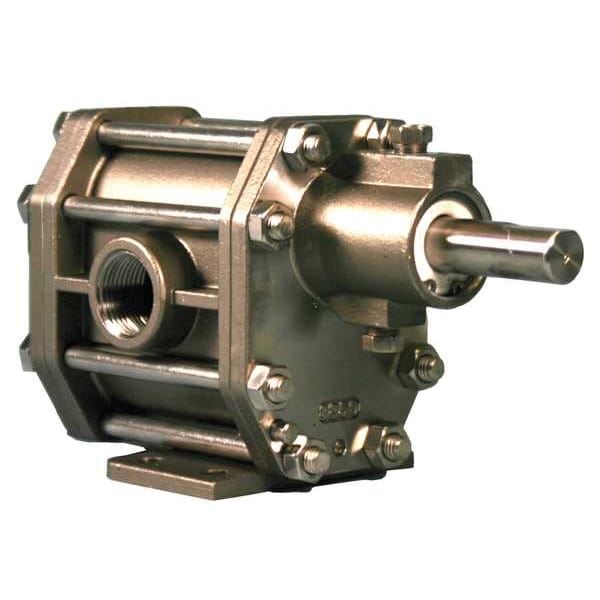

Rotary Gear Pedestal Pump, GPM 4.4

CHEMSTEEL| Zoro #: G1511483| Mfr #: S20716CA

$2121.56 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1511483 Mfr #: S20716CA
Design: PedestalRelief Valve: Without
Max. Viscosity: 500 SSUDuty Rating: Intermediate
Seal: MechanicalShaft Material: 316 Stainless steel
Pump Body Material: 316 Stainless SteelTemp. Range: -50 Degrees to 450 Degrees F
Pump RPM: 1725Item: Rotary Gear Pump Head
GPM @ 25 PSI: 4.3Max. Pressure: 150 psi
HP @ 20 PSI: .19GPM @ 20 PSI: 4.3
Port Size: 1/2"HP @ 80 PSI: .47
GPM @ 100 PSI: 4HP @ 25 PSI: .22
GPM @ 125 PSI: 3.9Amps AC: 8.4/4.2
Shaft Height: 2.63"HP @ 125 PSI: .68
GPM @ 75 PSI: 4.1Suction Lift @ 1725 RPM: 5 ft.
HP @ 100 PSI: .57Recommended Motor HP: 3/4
Suction Lift: 5 ft.HP @ 75 PSI: .45
Motor Frame: 56CShaft Dia.: .5"
HP @ 60 PSI: .38GPM @ 80 PSI: 4.1
HP @ 125 PSI @ 1725 RPM: .68GPM @ Freeflow: 4.4
GPM @ 60 PSI: 4.1GPM @ 125 PSI @ 1725 RPM: 3.9
HP @ 50 PSI: .33GPM @ 50 PSI: 4.2
HP @ Free Flow @ 1725 RPM: .08HP @ 40 PSI: .29
GPM @ 40 PSI: 4.2GPM @ Freeflow @ 1725 RPM: 4.4
HP @ Free Flow: .08Country of Origin (subject to change): United States

Product Description

Rotary Gear Pump Head, Duty Rating Intermediate, Pedestal, Pump Body Material 316 Stainless Steel, Port Size 1/2 In., Recommended Motor HP 3/4, Motor Frame 56C, Pump RPM 1725, Temp. Range -50 Degrees to 450 Degrees F, Max. Pressure 150 psi, Max. Viscosity 500 SSU, Relief Valve Without, Seal Mechanical, Shaft Dia. .5 In., Shaft Height 2.63 In., Shaft Material 316 Stainless Steel, Amps AC 8.4/4.2, GPM @ Freeflow 4.4, HP @ Free Flow .08
