  11. 3/4" Socket x Thread PVC Ball Valve Inline True Union

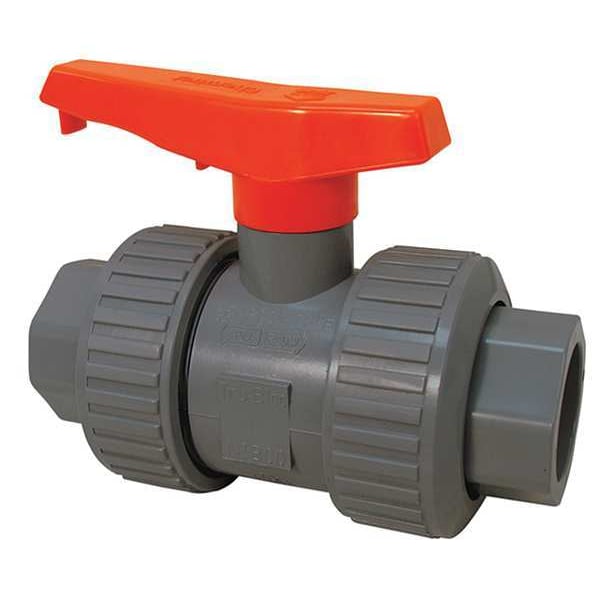

Chemtrol 3/4" Socket x Thread PVC Ball Valve Inline True Union MA930U8 - main

3/4" Socket x Thread PVC Ball Valve Inline True Union

  • Mfr # MA930U8

  • Zoro # G8596323

product price: $85.49
/ea
Free Shipping & Returns

Key Features

Ball Material
PVC
Body Style
Inline True Union
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MA930U8
Zoro #
G8596323
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
3/4 in
Overall Length
7.34 in
Connection Size - Side 1
3/4 in
Connection Size - Side 2
3/4 in
Handle Length
2.74 in
Nominal Valve Size
3/4 in

Details

Ball Material
PVC
Body Style
Inline True Union
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Corrosive Chemicals, Water
Connection Type
Socket x Thread
Item
Ball Valve
Stem Material
PVC
Handle Type
Lever
Max. Pressure
250 PSI CWP
Temp. Range
0 Degrees to 180 Degrees F
Stem Type
1-Piece Stem
Body Material
Plastic
Standards
ASTM F1970, NSF/ANSI Standard 14, NSF/ANSI Standard 61 and Annex G
Handle Material
PVC
Ball Valve Product Group
Manual
Hose I.D.
3/4 in
Seat Material
PTFE
Features
Non-Shock, Full Port, True Block Design, FKM O-Ring, Includes Both Socket and Female, Orange Handle, Do Not Use or Test with Compressed Air or Other Gases
Seal Material
FKM
Pipe Schedule Compatibility
Schedule 80
NSF Certifications for Food and Drinking Water
NSF 61
Connection Gender - Side 1
Female
Operating Temperature - Maximum
140 Degrees F
Maximum Pressure - Steam
130 PSI WSP
Connection Gender - Side 2
Female
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Minimum
73 Degrees F
Connection Type - Side 2
True-Union Socket/True-Union NPT
Connection Type - Side 1
Socket
3-A Standard Compliance
Not Rated
Color - Valve Handle
Orange

Description

Manual Two-Way Ball Valve, Body Material PVC, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 250 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material PVC, Ball Port Style Full Port, Handle Type Lever
