  11. Electronic Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

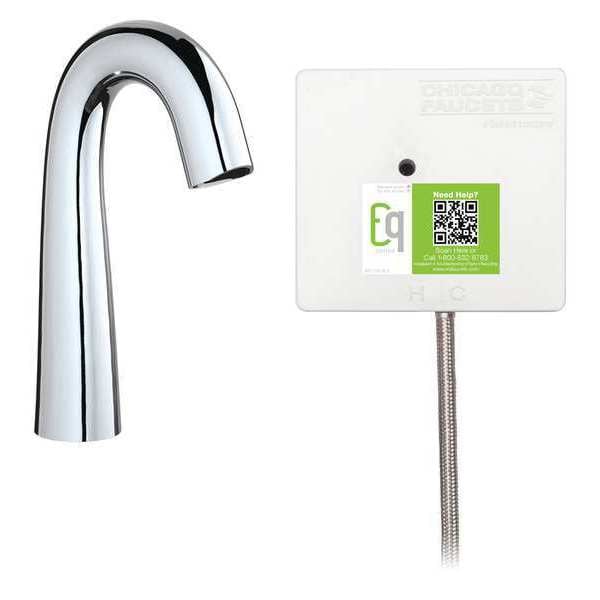

Chicago Faucet Electronic Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated EQ-C11A-11ABCP - main

Electronic Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

  • Mfr # EQ-C11A-11ABCP

  • Zoro # G4123771

product price: $544.99
/ea
Free Shipping & Returns

Key Features

Height
9-5/8"
Application
Commercial
Finish
Polished Chrome
Overall Height
9-5/8"
Compliance
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.7
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EQ-C11A-11ABCP
Zoro #
G4123771
UPC #
611943009410
Country of Origin
United States

Dimensions

Height
9-5/8"
Overall Height
9-5/8"
Spout Length
4 1/2 in
Manufacturers Warranty Length
1 yr Limited Finish Warranty, 5 yr Limited Mechanicals Warranty, 3 yr Limited Electronics and Solenoid Warranty, Lifetime Limited Faucet Warranty
Max. Installation Surface Thickness
1 1/2 in
Spout Height
6 1/8 in
Water Inlet Connection Size
3/8 in
Inlet Connection Size
3/8 in
For Mounting Hole Diameter - Maximum
1 1/2 in
Spout Outlet Height
6 1/4 in
Overall Width
2 in
Spout Height - Maximum
6 1/8 in
For Mounting Hole Diameter - Minimum
1 in
For Surface Thickness - Maximum
1 1/2 in

Details

Application
Commercial
Finish
Polished Chrome
Item
Bathroom Sensor Faucet
Compliance
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.7
Temp. Control
No
Flow Outlet Type - Faucet
Laminar
Faucet Type
Bathroom Sink Faucet
Faucet Finish
Chrome
Series
EQ High Arc
Sensor Lead
Infrared
Flow Outlet Type
Nonaerated
Number of Handles
0
Drain Type
Grid Strainer
Amps
0.01 A
Valve Type
Compression
Sensor Range
1 in to 8 in
Commercial / Residential
Commercial
Battery Charger CEC Compliant
CEC Compliant
Faucet Spout Shape
Mid Arc
Mounting Hole Center to Center
Single Hole
Vandal Resistant Features
Vandal Resistant Outlet
Faucet Spout
Rigid Cast
ADA Compliance
ADA Compliant
Drain Style
Grid Strainer
Body Material
Cast Brass
Number of Holes
1
Flow Rate
0.5 gpm
Mounting Type - Faucet
Deck
Faucet Operation
Sensor
Connection
3/8" Female Compression
Includes
Mounting Hardware
Replacement Cartridge
Mfr. No. 243.152.AB.1
Faucet Handle Type
None
ADA Compliant
Yes
Voltage
6V DC
Ligature Resistant
No
CEC Compliant
CEC Compliant
Power Source
Battery
Standards
ADA ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Residential / Commercial
Commercial
Mounting Type
Deck
Flow Outlet Type (Faucet)
Laminar
Features
Bluetooth Compatible
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Spout Reach
4 1/2 in
Water Inlet Connection Type
Push in Compression
Temperature Control
Non-Adjustable Temperature
Valve Type - Faucets
Solenoid Valve
Max. Mounting Hole Center Distance
Single Hole
Faucet Body Material
Cast Brass
Replacement Cartridge Mfr. Model Number
243.152.AB.1
Faucet Activation
Motion Sensor
Battery Type
AA
Sensor Type
Self-Adjusting
For Location
Bathroom
Sensor Range - Maximum
13 in
Water Supply Type
Single Tempered Line
Product Type
Sensor Faucet
Spout Shape
Arc
Spout Style
Fixed
Vandal Resistance
Vandal-Resistant Outlet
Compatible Cartridge Manufacturer Part Number
243.152.AB.1
Includes Handle
Handle Not Included
Ligature Resistance
Not Ligature-Resistant
Temperature - Maximum
180 Degrees F
Includes Drain
Drain Not Included
Sensor Range - Minimum
3 in
Time Out
10 sec
Inlet Connection Gender
Female
Flow Type
Laminar
Flow Rate - Maximum
0.5 gpm
Temperature - Minimum
100 Degrees F
Number of Mounting Holes
1
Inlet Connection Type
Compression
Warranty
1 yr Limited Finish Warranty, 3 yr Limited Electronics and Solenoid Warranty, 5 yr Limited Mechanical Warranty, Lifetime Limited Faucet Warranty
Operation Method
Motion Sensor
Pressure - Maximum
125 psi
CEC Compliance
CEC Compliant
Includes Transformer
Transformer Not Included
Includes Batteries
Batteries Included
Temperature Control Method
Mixing Valve Not Included

Description

Lavatory Faucet, Faucet Operation Sensor, Number of Handles 0, Handle Type Sensor, Connection 3/8 In. Female Compression, 0.5 gpm Flow Rate, Number of Holes 1, Mounting Hole Center to Center Single Hole, Body Material Brass, Faucet Spout Rigid Cast, ADA Compliant Yes, Drain Type Grid, Mounting Type Deck, Power Source Battery, Voltage 6, 0.01 Amps, Spout Length 4-1/2 In., Sensor Range 1 In. to 8 In., Valve Type Solenoid, Finish Chrome, Overall Height 9-5/8 In., Flow Outlet Type Nonaerated

Restrictions
