Shop CHICAGO FAUCET

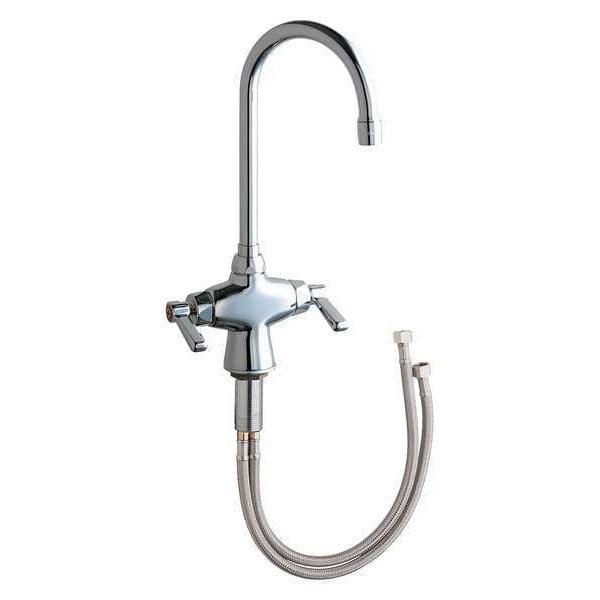

Gooseneck Kitchen Faucet, Manual, Single Hole Mount, 1 Hole Commercial

  • Mfr # 50-XKABCP

  • Zoro # G4976447

product price:
$
310.99
/ea
Free Shipping & Returns

Key Features

Number of Holes
1
Mounting Hole Center to Center
Single Hole
Finish
Polished Chrome
Number of Handles
2
Faucet Operation
Manual
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50-XKABCP
Zoro #
G4976447
UPC #
611943571979
Country of Origin
United States

Dimensions

Height
13-3/8"
Manufacturers Warranty Length
Lifetime Faucet, 5 yr. Cartridge, 1 yr. Finish
Spout Length
5-1/4"
Connection Size
3/8" Copper
Overall Height
27 3/4 in
Spout Height
13-1/4"
Max. Installation Surface Thickness
1-5/8"
Water Inlet Connection Size
3/8"
Overall Width
2 in
For Surface Thickness - Maximum
1 5/8 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Outlet Height
9 1/4 in
Spout Height - Maximum
13 1/4 in
For Mounting Hole Diameter - Maximum
1 1/2 in

Details

Number of Holes
1
Mounting Hole Center to Center
Single Hole
Finish
Polished Chrome
Number of Handles
2
Faucet Operation
Manual
ADA Compliant
Yes
Flow Rate
2.20 gpm
Handle Type
Lever Handle
Mounting Type
Deck Mount
Item
Gooseneck Kitchen Faucet
Faucet Handle Type
Lever
ADA Compliance
ADA Compliant
Body Material
Cast Brass
Faucet Type
Kitchen Sink Faucet
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Faucet Spout Shape
Gooseneck
Valve Type
Ceramic Disc
Compliance
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.1
Connection
3/8" Compression
Mounting Type - Faucet
Deck
Mounting
Deck
Flow Outlet Type
Aerated
Flow Outlet Type (Faucet)
Aerated
Faucet Finish
Chrome
Replacement Cartridge
5UTV7 or 5UTV8
Flow Outlet Type - Faucet
Aerated
Type
Two Handle
Includes
Mounting hardware
Residential / Commercial
Commercial
Power Source
Manual
Handle Material
Cast Brass
Temperature Control
Non-Adjustable Temperature
Water Inlet Connection Type
Push in Compression
Faucet Activation
Manual
CEC Compliant
Non CEC Compliant
Ligature Resistant
No
Valve Type - Faucets
Hot/Cold Cartridge
Faucet Body Material
Cast Brass
Replacement Cartridge Mfr. Model Number
1-099XKJKABNF, 1-100XKJKABNF
Vandal Resistant Features
Vandal Resistant Handles
Spout Reach
5 3/8 in
Faucet Handle Material
Metal
Max. Mounting Hole Center Distance
Single Hole
Material of Construction
Brass
Application
Commercial
Outlet Type
Aerator
Vandal Resistance
Vandal-Resistant Handle
Flow Rate - Maximum
2.2 gpm
CEC Compliance
Not CEC Compliant
Spout Shape
Gooseneck
Temperature - Minimum
40 Degrees F
Flow Type
Spray
Inlet Connection Type
Compression
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Operation Method
Manual
Inlet Connection Gender
Male
Temperature - Maximum
140 Degrees F
Compatible Cartridge Manufacturer Part Number
1-099XKJKABNF, 1-100XKJKABNF
Pressure - Maximum
125 psi
Product Type
Faucet
Ligature Resistance
Not Ligature-Resistant
Number of Mounting Holes
1
For Location
Kitchen
Legend Style
Color
For Water Temperature
Hot/Cold
Water Supply Type
Hot and Cold Lines
Spout Style
Swivel
Includes Drain
Drain Not Included
Power Source - TS Only
Manual
Power Source - old
Manual

Description

Item Gooseneck Kitchen Faucet
