  6. Gooseneck Service Sink Faucet, Manual, 3" Mount, 2 Hole Commercial

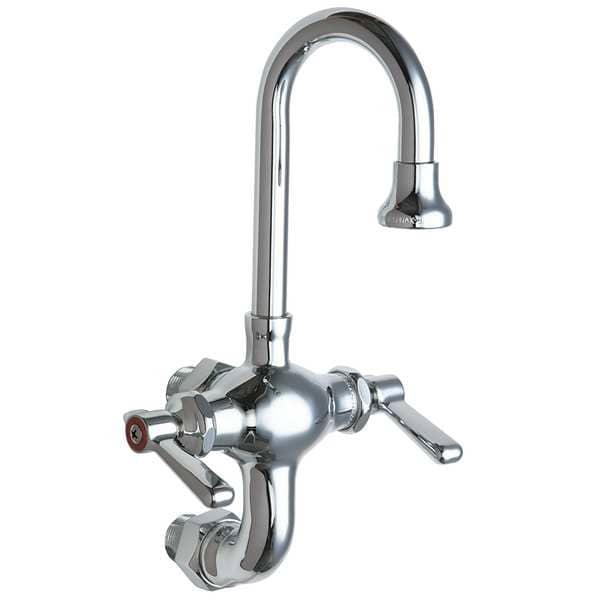

Chicago Faucet Gooseneck Service Sink Faucet, Manual, 3" Mount, 2 Hole Commercial 225-ABCP - main

Gooseneck Service Sink Faucet, Manual, 3" Mount, 2 Hole Commercial

  • Mfr # 225-ABCP

  • Zoro # G4978425

product price:  $377.99
/ea
Free Shipping & Returns

Key Features

Number of Holes
2
Mounting Hole Center to Center
3"
Finish
Polished Chrome
Number of Handles
2
Faucet Operation
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
225-ABCP
Zoro #
G4978425
UPC #
611943482794
Country of Origin
United States

Dimensions

Connection Size
3/4" MNPT
Spout Length
3-3/8"
Height
7-5/8"
Manufacturers Warranty Length
Lifetime Faucet, 5 yr. Cartridge, 1 yr. Finish
Overall Height
10 5/8 in
Spout Height
7-5/8"
Max. Installation Surface Thickness
1/16"
Water Inlet Connection Size
3/4"
Overall Depth
6 in
Spout Height - Maximum
7 5/8 in
Spout Outlet Height
3 7/8 in
For Surface Thickness - Maximum
1/16 in
For Mounting Hole Diameter - Minimum
1 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Number of Holes
2
Mounting Hole Center to Center
3"
Finish
Polished Chrome
Number of Handles
2
Faucet Operation
Manual
ADA Compliant
Yes
Flow Rate
1.50 gpm
Handle Type
Lever Handle
Mounting Type
Wall Mount
Item
Gooseneck Service Sink Faucet
ADA Compliance
ADA Compliant
Connection
3/4" MNPT
Flow Outlet Type (Faucet)
Laminar
Replacement Cartridge
5UTV5 or 5UTV6
Mounting
Wall
Faucet Type
Service Sink Faucet
Faucet Handle Type
Lever
Valve Type
Compression
Mounting Type - Faucet
Wall
Vandal Resistant Features
Vandal Resistant Handles
Mounting Type (Faucet)
Wall
Faucet Spout Shape
Gooseneck
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Flow Outlet Type - Faucet
Laminar
Faucet Finish
Chrome
Body Material
Cast Brass
Power Source
Manual
Residential / Commercial
Commercial
Handle Material
Cast Brass
Faucet Activation
Manual
Ligature Resistant
No
Faucet Body Material
Cast Brass
Water Inlet Connection Type
Male NPT
Replacement Cartridge Mfr. Model Number
1-099XTJKABNF, 1-100XTJKABNF
Faucet Handle Material
Metal
Valve Type - Faucets
Hot/Cold Cartridge
Temperature Control
Non-Adjustable Temperature
Spout Reach
3-3/8"
Max. Mounting Hole Center Distance
4"
CEC Compliant
Non CEC Compliant
Material of Construction
Cast Brass
Application
Commercial
Legend Style
Color
Temperature - Maximum
140 Degrees F
Flow Rate - Maximum
1.5 gpm
Ligature Resistance
Not Ligature-Resistant
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Operation Method
Manual
Inlet Connection Type
NPT
Flow Type
Spray
Mounting Hole Center-to-Center Distance - Maximum
3 in
For Location
Utility Room
Inlet Connection Gender
Male
Spout Shape
Gooseneck
Temperature - Minimum
40 Degrees F
Number of Mounting Holes
2
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
CEC Compliance
Not CEC Compliant
Pressure - Maximum
125 psi
Vandal Resistance
Vandal-Resistant Handle
For Water Temperature
Hot/Cold
Product Type
Faucet
Spout Style
Fixed
Includes Drain
Drain Not Included
Water Supply Type
Hot and Cold Lines

Description

Item Gooseneck Service Sink Faucet
