  6. Low Arc Kitchen Faucet, Manual, 4" Mount, 2 Hole Commercial

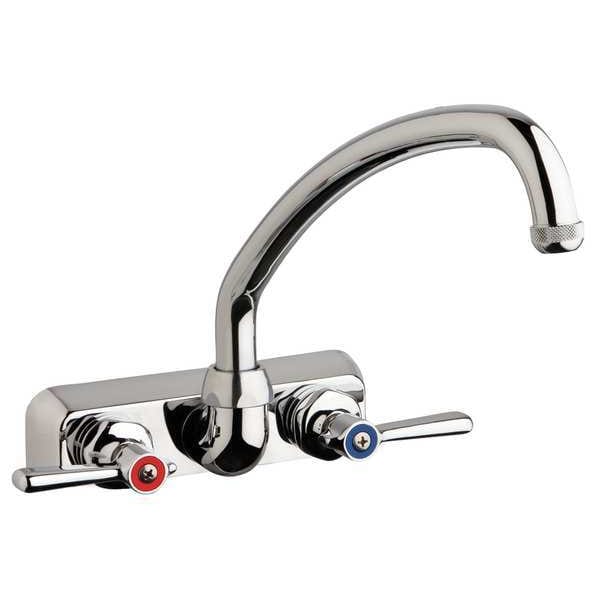

Chicago Faucet Low Arc Kitchen Faucet, Manual, 4" Mount, 2 Hole Commercial W4W-L9E1-369AB - main
Shop CHICAGO FAUCET

Low Arc Kitchen Faucet, Manual, 4" Mount, 2 Hole Commercial

  • Mfr # W4W-L9E1-369AB

  • Zoro # G5069461

product price:  $193.99
/ea
Free Shipping & Returns

Key Features

Number of Holes
2
Mounting Hole Center to Center
4"
Finish
Polished Chrome
Number of Handles
2
Faucet Operation
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
W4W-L9E1-369AB
Zoro #
G5069461
UPC #
611943578916
Country of Origin
Taiwan, Province of China

Dimensions

Spout Length
9-1/2"
Height
7"
Connection Size
1/2" NPSM Male
Manufacturers Warranty Length
1 yr. Limited Finish Warranty, 5 yr. Limited Cartridge Warranty
Overall Height
7 1/4 in
Max. Installation Surface Thickness
1/4"
Water Inlet Connection Size
1/2"
Spout Height
7"
Overall Width
6 1/2 in
For Surface Thickness - Maximum
1/4 in
Spout Height - Maximum
7 in
Spout Outlet Height
4 3/4 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Number of Holes
2
Mounting Hole Center to Center
4"
Finish
Polished Chrome
Number of Handles
2
Faucet Operation
Manual
ADA Compliant
Yes
Flow Rate
6.00 gpm
Handle Type
Lever Handle
Mounting Type
Wall Mount
Item
Low Arc Kitchen Faucet
Faucet Handle Type
Lever
Flow Outlet Type (Faucet)
Laminar
Body Material
Brass
Replacement Cartridge
5UTV7 or 5UTV8
Vandal Resistant Features
Vandal Resistant Handles
Compliance
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.1
ADA Compliance
ADA Compliant
Mounting Type (Faucet)
Wall
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Faucet Finish
Chrome
Flow Outlet Type
Full Flow
Mounting
Wall
Flow Outlet Type - Faucet
Laminar
Faucet Type
Kitchen Sink Faucet
Valve Type
Compression
Mounting Type - Faucet
Wall
Faucet Spout
Swing
Connection
1/2" MNPS
Faucet Spout Shape
Low Arc
Power Source
Manual
Handle Material
Cast Brass
Includes
Mounting hardware
Type
Manual
Features
Mounting Hardware Included
Residential / Commercial
Commercial
Faucet Body Material
Brass
Spout Reach
9-1/2"
CEC Compliant
Non CEC Compliant
Water Inlet Connection Type
Male NPSM
Ligature Resistant
No
Max. Mounting Hole Center Distance
4"
Series
W4W
Faucet Handle Material
Metal
Temperature Control
Non-Adjustable Temperature
Replacement Cartridge Mfr. Model Number
1-099XKJKABNF, 1-100XKJKABNF
Valve Type - Faucets
Hot/Cold Cartridge
Faucet Activation
Manual
Material of Construction
Brass
Application
Commercial
Outlet Type
Full Flow
Warranty
1 yr Limited, 5 yr Limited
Inlet Connection Gender
Male
Flow Type
Laminar
Spout Shape
Arc
Mounting Hole Center-to-Center Distance - Minimum
4 in
Inlet Connection Type
NPSM
For Location
Kitchen
Ligature Resistance
Not Ligature-Resistant
Compatible Cartridge Manufacturer Part Number
1-099XKJKABNF, 1-100XKJKABNF
Vandal Resistance
Vandal-Resistant Handle
Mounting Hole Center-to-Center Distance - Maximum
4 in
Flow Rate - Maximum
6 gpm
Temperature - Minimum
40 Degrees F
CEC Compliance
Not CEC Compliant
Operation Method
Manual
Legend Style
Color
Product Type
Faucet
Temperature - Maximum
140 Degrees F
Number of Mounting Holes
2
Pressure - Maximum
125 psi
For Water Temperature
Hot/Cold
Includes Drain
Drain Not Included
Spout Style
Swivel
Water Supply Type
Hot and Cold Lines

Description

Item Low Arc Kitchen Faucet
