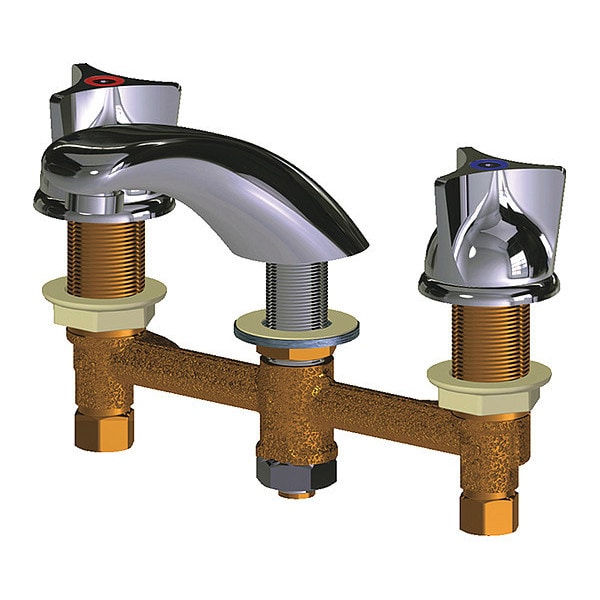

Chicago Faucet Manual Low Arc Bathroom Faucet, 8" Mount, Polished Chrome 3 Hole 404-V950ABCP - main

Manual Low Arc Bathroom Faucet, 8" Mount, Polished Chrome 3 Hole

  • Mfr # 404-V950ABCP

  • Zoro # G4978154

product price:  $354.99
/ea
Free Shipping & Returns

Key Features

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
3-Wing Canopy
Number of Handles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
404-V950ABCP
Zoro #
G4978154
UPC #
611943465247
Country of Origin
United States

Dimensions

Spout Length
5 in
Overall Height
6 1/4 in
Spout Height
2 7/8 in
For Mounting Hole Diameter - Maximum
1 1/2 in
Spout Height - Maximum
2 7/8 in
For Mounting Hole Diameter - Minimum
1 3/8 in
Spout Outlet Height
1 3/4 in
For Surface Thickness - Maximum
1 3/8 in

Details

Finish
Polished Chrome
Mounting Type
Deck
Faucet Type
Bathroom Sink Faucet
Handle Type
3-Wing Canopy
Number of Handles
2
ADA Compliant
Yes
Series
404
Spout Shape
Arc
Spout Reach
5 in
Flow Rate - Maximum
2.2 gpm
Number of Mounting Holes
3
Body Material
Cast Brass
Mounting Hole Center to Center
8"
Item
Low Arc Bathroom Faucet
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF/ANSI/CAN 372 Low Lead Content, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Valve Type
Compression
Faucet Spout
Integral Cast Rigid
Replacement Cartridge
5UTV6 or 5UTV5
Connection
1/2 in MNPS
Connection Type
1/2" NPSM
ADA Compliance
Not ADA Compliant
Battery Charger CEC Compliant
Non CEC Compliant
Includes
Mounting Hardware
Features
Mounting Hardware Included
Handle Material
Cast Brass
Type
Two Handle
Power Source
Manual
Water Inlet Connection Type
Male NPSM
Valve Type - Faucets
Hot/Cold Cartridge
Max. Mounting Hole Center Distance
8 in
Temperature Control
Non-Adjustable Temperature
Application
Commercial
Outlet Type
Aerator
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Mounting Hole Center-to-Center Distance - Maximum
8 in
Legend Style
Color
Compatible Cartridge Manufacturer Part Number
1-099XTJKABNF, 1-100XTJKABNF
For Location
Bathroom
Pressure - Maximum
125 psi
Inlet Connection Gender
Male
Vandal Resistance
Vandal-Resistant Handle, Vandal-Resistant Outlet
Flow Type
Spray
Product Type
Faucet
Temperature - Maximum
140 Degrees F
Temperature - Minimum
40 Degrees F
Operation Method
Manual
Inlet Connection Type
NPSM
Ligature Resistance
Not Ligature-Resistant
Mounting Hole Center-to-Center Distance - Minimum
8 in
CEC Compliance
Not CEC Compliant
For Water Temperature
Hot/Cold
Spout Style
Fixed
Water Supply Type
Hot and Cold Lines
Includes Drain
Drain Not Included
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions

This item has been restricted from sale in the following states: NJ
