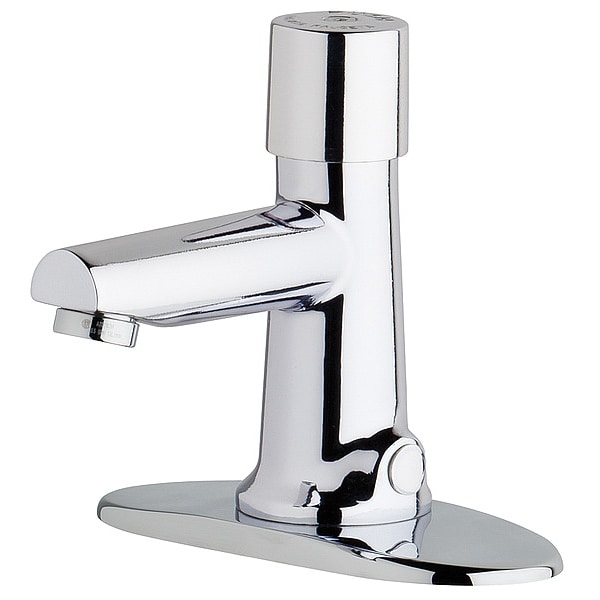

Chicago Faucet Metering 4" Mount, 3 Hole Straight Spout Bathroom Faucet, Chrome plated 3501-4E2805ABCP - main

Metering 4" Mount, 3 Hole Straight Spout Bathroom Faucet, Chrome plated

  • Mfr # 3501-4E2805ABCP

  • Zoro # G5376865

product price: $292.99
/ea
Free Shipping & Returns

Key Features

Faucet Operation
Metering
Number of Holes
3
Mounting Type
Deck
ADA Compliant
Yes
Finish
Polished Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3501-4E2805ABCP
Zoro #
G5376865
UPC #
611943512170
Country of Origin
United States

Dimensions

Spout Length
4 in
Manufacturers Warranty Length
Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 1 yr Limited Finish warranty, 5 yr Limited Cartridge Warranty
Connection Size
3/8" Compression
Overall Height
29 7/8 in
Water Inlet Connection Size
3/8 in
Spout Height
3 3/4 in
Max. Installation Surface Thickness
1 1/4 in
Hose Length
16"
Overall Width
6 1/2 in
Spout Height - Maximum
3 3/4 in
Spout Outlet Height
2 3/4 in
For Surface Thickness - Maximum
1 1/4 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Mounting Hole Diameter - Maximum
1 3/8 in

Details

Faucet Operation
Metering
Number of Holes
3
Mounting Type
Deck
ADA Compliant
Yes
Finish
Polished Chrome
Handle Type
Metering Knob
Flow Rate
0.5 gpm
Faucet Spout Shape
Straight
Handle Material
Cast Brass
Number of Handles
1
Body Material
Cast Brass
Flow Outlet Type
Nonaerated
Faucet Spout
Integral Cast
Item
Straight Spout Bathroom Faucet
Faucet Type
Bathroom Sink Faucet
ADA Compliance
ADA Compliant
Faucet Handle Type
Metering
Includes
Mounting Hardware
Battery Charger CEC Compliant
CEC Compliant
CEC Compliant
CEC Compliant
Mounting Type - Faucet
Deck
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Flow Outlet Type - Faucet
Spray
Replacement Cartridge
2EU68 or 26Y193
Compliance
ASME A112.18.1/CSA B125.1, California Health and Safety Code 116875, Vermont Bill, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61
Ligature Resistant
No
Vandal Resistant Features
Vandal Resistant Handles
Commercial / Residential
Commercial
Faucet Finish
Chrome
Residential / Commercial
Commercial
Flow Outlet Type (Faucet)
Spray
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF 372, NSF 61/9
Power Source
Manual
Features
Mounting Hardware Included
Type
One Handle
Valve Type
Compression
Faucet Body Material
Cast Brass
Series
3501
Water Inlet Connection Type
Push in Compression
Temperature Control
Non-Adjustable Temperature
Valve Type - Faucets
Hot/Cold Cartridge
Spout Reach
4 in
Replacement Cartridge Mfr. Model Number
665-190KJKABNF, 671-XJKABNF
Faucet Handle Material
Metal
Faucet Activation
Manual
Max. Mounting Hole Center Distance
4 in
Application
Commercial
Material of Construction
Brass
Outlet Type
Spray
Time Out
25 sec
Temperature - Minimum
40 Degrees F
Vandal Resistance
Vandal-Resistant Handle, Vandal-Resistant Outlet
Ligature Resistance
Not Ligature-Resistant
Pressure - Maximum
125 psi
Time Out - Minimum
2 sec
Number of Mounting Holes
3
CEC Compliance
CEC Compliant
Product Type
Faucet
Inlet Connection Type
Compression
Temperature - Maximum
140 Degrees F
Flow Type
Laminar
Mounting Hole Center-to-Center Distance - Maximum
4 in
Flow Rate - Maximum
0.5 gpm
Warranty
1 yr Limited, 5 yr Limited, Lifetime Limited
Operation Method
Manual
Mounting Hole Center-to-Center Distance - Minimum
4 in
Spout Shape
Straight
Compatible Cartridge Manufacturer Part Number
665-190KJKABNF, 671-XJKABNF
For Location
Bathroom
For Water Temperature
Hot/Cold
Spout Style
Fixed
Includes Drain
Drain Not Included
Water Supply Type
Single Tempered Line

Description

Item Straight Spout Bathroom Faucet

Restrictions
