Mixing Valve, Brass, 4.6 gpm, 5" H, 5-7/8" W
Mfr # 131-CFMAB
Zoro # G2757041
product price:Â
$
209.99
/ea
Free Shipping & Returns
Key Features
Inlet Size
3/8 in
Outlet Type
Compression
Flow Rate
4.6 gpm
Inlet Type
Compression
Inlet Temperature (Cold)
39 Degrees to 80 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 131-CFMAB
- Zoro #
- G2757041
- UPC #
- 611943138066
- Country of Origin
- United States
Dimensions
- Inlet Size
- 3/8 in
- Overall Height
- 5 in
- Outlet Size
- 3/8 in
- Overall Width
- 5 7/8 in
- Overall Length
- 5 7/8 in
- Inlet Connection Size - Cold
- 3/8 in
- Outlet Connection Size
- 3/8 in
- Inlet Connection Size - Hot
- 3/8 in
- Wire Rope Length
- 5 7/8 in
- Length
- 5 7/8 in
Description

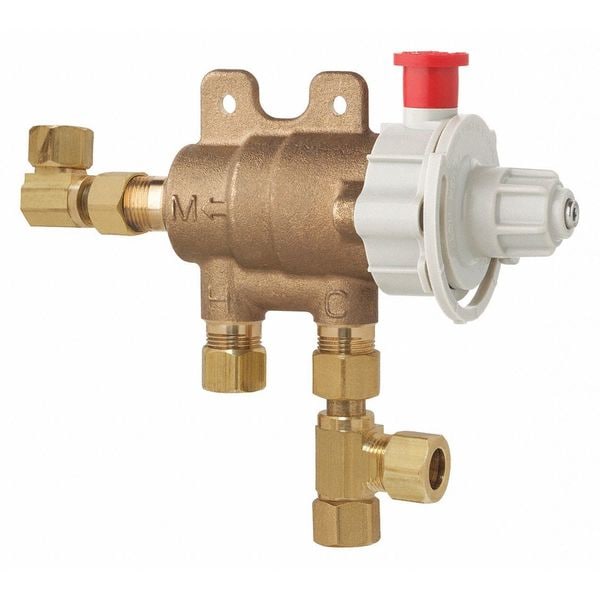

Thermostatic Mixing Valve, Body Material Brass, Flow Rate 4.6 gpm, Inlet Type Compression, Outlet Type Compression, Inlet Size 3/8 in, Outlet Size 3/8 in, Temp. Range 100 Degrees to 180 Degrees F, Max. Pressure 125 psi, Overall Height 5 in, Overall Width 5 7/8 in, Inlet Temperature (Cold) 39 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Lavatories, Includes Wall Mounting Bracket, Standards ASME A112.1070, ASSE 1070, CSA B125.70, NSF/ANSI 61
