  6. Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Polished chrome

This item is Discontinued.

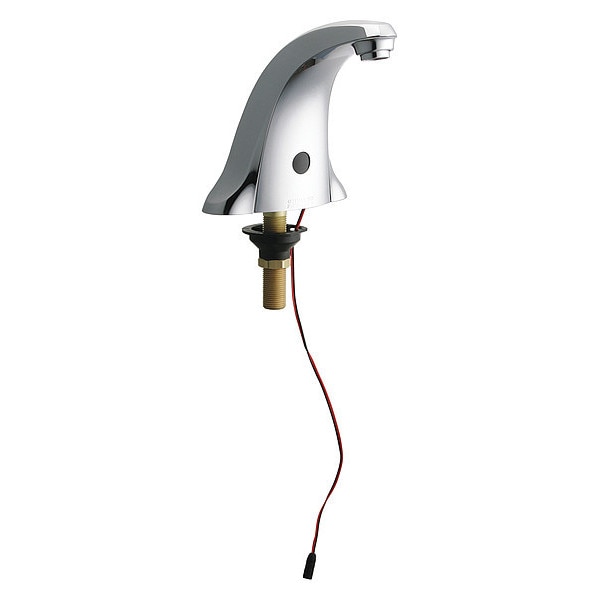

Chicago Faucet Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Polished chrome 116.706.AB.1

Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Polished chrome (Discontinued)

  • Mfr # 116.706.AB.1
  • Zoro # G1704482
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
116.706.AB.1
Zoro #
G1704482
UPC #
611943474454
Country of Origin
United States

Dimensions

Height
6-1/2"
Spout Length
5 3/8 in
Manufacturers Warranty Length
Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 5 yr Limited Mechanicals Warranty, 3 yr Limited Electronics and Solenoid Warranty, 1 yr Limited Finish Warranty
Connection Size
1/2" Male NPSM
Spout Height
6 1/2 in
Max. Installation Surface Thickness
1 1/2 in
Water Inlet Connection Size
1/2 in

Details

Faucet Operation
Sensor
Mounting Hole Center to Center
Single Hole
Number of Holes
1
Mounting Type
Deck Mount
ADA Compliant
Yes
Finish
Chrome Plated
Handle Type
Sensor
Flow Rate
0.5 gpm
Faucet Spout Shape
Mid Arc
Number of Handles
0
Body Material
Low Lead Cast Brass
Voltage
12V DC
Flow Outlet Type
Laminar
Vandal Resistant Features
Vandal Resistant Outlet
Flow Outlet Type - Faucet
Laminar
Faucet Handle Type
None
Mounting Type - Faucet
Deck
Faucet Spout
Rigid
Series
E-Tronic
Power Source
AC Powered
Sensor Range
3 in to 13 in
Battery Charger CEC Compliant
CEC Compliant
Faucet Type
Bathroom Sink Faucet
Faucet Finish
Chrome
Valve Type
Metering
Connection
1/2" MNPS
Item
Mid Arc Bathroom Faucet
CEC Compliant
CEC Compliant
Flow Outlet Type (Faucet)
Laminar
Drain Type
None
ADA Compliance
Yes
Residential / Commercial
Commercial
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, NSF 372, NSF 61/9
Commercial / Residential
Commercial
Includes
Mounting Hardware
Ligature Resistant
No
Features
Mounting Hardware Included
Type
Electronic
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Max. Mounting Hole Center Distance
Single Hole
Faucet Body Material
Cast Brass
Valve Type - Faucets
Solenoid Valve
Faucet Activation
Motion Sensor
Temperature Control
No
Spout Reach
5 3/8 in
Replacement Cartridge Mfr. Model Number
243.152.AB.1
Water Inlet Connection Type
Male NPSM
Material of Construction
Cast Brass
Outlet Type
Laminar

Description

Item Mid Arc Bathroom Faucet

Restrictions

Hazardous material
