Shop CHICAGO FAUCET

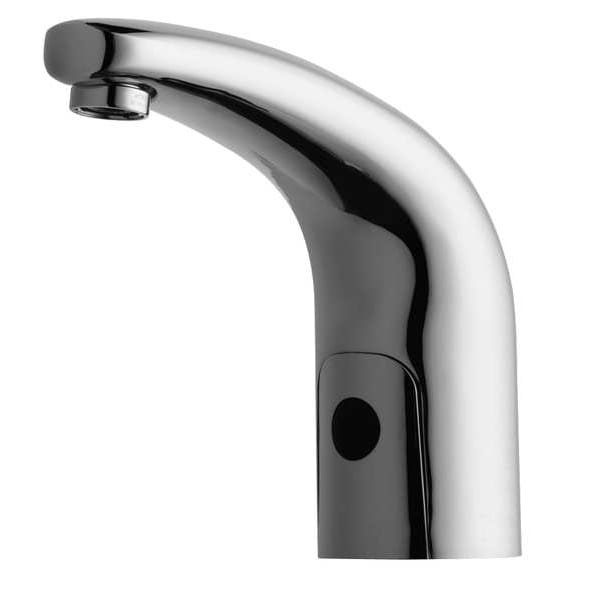

Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Polished chrome

  • Mfr # WWG116.101.AB.1T

  • Zoro # G0908214

product price:
$
742.99
/ea
Free Shipping & Returns

Key Features

Height
6-5/8"
Application
Commercial
Finish
Polished Chrome
Valve Type
Metering
Manufacturers Warranty Length
Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 5 yr Limited Mechanicals Warranty, 3 yr Limited Electronics and Solenoid Warranty, 1 yr Limited Finish Warranty
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WWG116.101.AB.1T
Zoro #
G0908214
UPC #
611943473990
Country of Origin
United States
Application
Commercial
Finish
Polished Chrome
Item
Bathroom Sensor Faucet
Valve Type
Metering
ADA Compliant
Yes
Connection
3/8" Female Compression
Series
HyTronic Traditional
Standards
ADA ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Sensor Range
3 in to 13 in
Flow Rate
0.5 gpm
Voltage
12V AC
Includes
Mounting Hardware
Number of Holes
1
Mounting Type
Deck Mount
Commercial / Residential
Commercial
Faucet Handle Type
None
Flow Outlet Type
Laminar
Drain Type
None
Mounting Type - Faucet
Deck
Body Material
Cast Brass
Faucet Type
Bathroom Sink Faucet
Faucet Spout Shape
Mid Arc
Mounting Hole Center to Center
Single Hole
Number of Handles
0
Faucet Operation
Sensor
Ligature Resistant
No
Vandal Resistant Features
Vandal Resistant Outlet
Faucet Spout
Rigid
Flow Outlet Type (Faucet)
Laminar
Faucet Finish
Chrome
Power Source
Hardwired
CEC Compliant
CEC Compliant
ADA Compliance
ADA Compliant
Battery Charger CEC Compliant
CEC Compliant
Flow Outlet Type - Faucet
Laminar
Residential / Commercial
Commercial
Features
Bluetooth Compatible
Type
Electronic
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Faucet Activation
Motion Sensor
Spout Reach
5 1/2 in
Faucet Body Material
Cast Brass
Water Inlet Connection Type
Push in Compression
Temperature Control
Non-Adjustable Temperature
Max. Mounting Hole Center Distance
Single Hole
Replacement Cartridge Mfr. Model Number
243.152.AB.1
Valve Type - Faucets
Solenoid Valve
Sensor Type
Adjustable
Material of Construction
Cast Brass
Outlet Type
Laminar
Compatible Cartridge Manufacturer Part Number
243.152.AB.1
Product Type
Sensor Faucet
Pressure - Maximum
125 psi
Includes Transformer
Transformer Not Included
CEC Compliance
CEC Compliant
For Location
Bathroom
Temperature - Maximum
140 Degrees F
Includes Drain
Drain Not Included
Flow Rate - Maximum
0.5 gpm
Includes Handle
Handle Not Included
Operation Method
Motion Sensor
Inlet Connection Type
Compression
Ligature Resistance
Not Ligature-Resistant
Spout Style
Fixed
Flow Type
Spray
Vandal Resistance
Vandal-Resistant Outlet
Water Supply Type
Single Tempered Line
Temperature Control Method
Mixing Valve Not Included
Temperature - Minimum
40 Degrees F
Sensor Range - Maximum
13 in
Number of Mounting Holes
1
Sensor Range - Minimum
3 in
Time Out
40 sec
Spout Shape
Arc
Warranty
1 yr Limited Finish Warranty, 3 yr Limited Electronics and Solenoid Warranty, 5 yr Limited Mechanical Warranty, Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Bathroom Faucet, Faucet Operation Sensor, Handle Type Sensor, Connection 3/8 In. Female Compression, 0.5 gpm Flow Rate, Number of Holes 1, Body Material Cast Brass, Faucet Spout Rigid, ADA Compliant Yes, Drain Type None, Mounting Type Deck, Power Source AC Powered, Voltage 12V, Spout Length 5-1/8 In., Sensor Range 3 In. to 13 In., Valve Type Metering, Finish Chrome Plated, Flow Outlet Type Laminar
