13PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP Steam Oxide HSS 1/16-1/4x1/64
- Mfr # 69847
- Zoro # G3723772
Key Features
Specifications
Details
- MFR #
- 69847
- Zoro #
- G3723772
- UPC #
- 662355698471
- Country of Origin
- United States
- Item
- Jobber Length Drill Bit Set
- Number of Pieces
- 13
- Cutting Direction
- Right Hand
- Drill Bit Point Angle
- 135 Degrees
- Drill Bit Material
- High Speed Steel
- Includes
- Metal Drill Index
- Drill Bit Grouping
- Drill Bit Set
- Point Type
- P3 Split Point
- List Number
- 150ASP
- Standards
- NAS 907 Type B
- Number of Drill Bits
- 13
- Material Grade - Machining
- Heavy Duty
- Drill Bit Point Type
- Split Point
- Finish - Machining
- Black Oxide
- Material - Machining
- High Speed Steel
- Coolant Fed
- Non-Coolant Through
- Primary Material Application
- All Materials
- Measurement System
- Fractional Inch
- Shank Type - Machining
- Straight
- Aircraft Drill
- Yes
- Drill Bit Case Type
- Drill Index
- Flute Type
- Spiral
Description

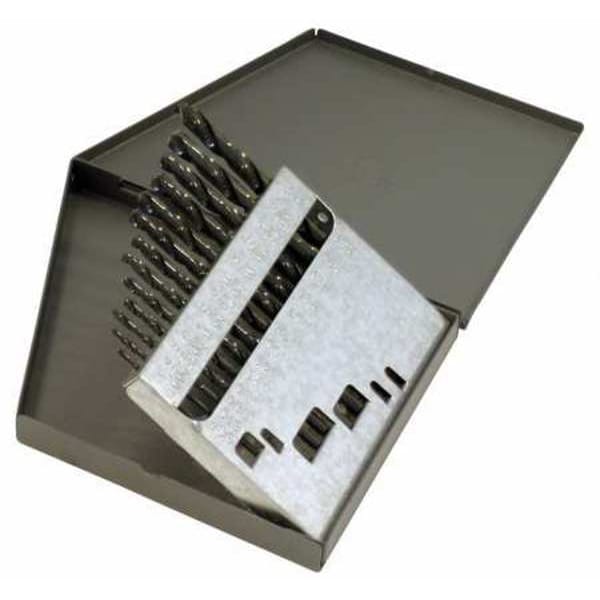

The CHICAGO-LATROBE 69847 Jobber Length Drill Bit Set is a collection of 13 high-speed steel drill bits intended for use with materials consistent with the bit material and geometry specifications (high-speed steel, P3 split point, spiral flutes). The set includes fractional inch sizes from 1/16 inch to 1/4 inch, made from high-speed steel, with P3 split point tips with a 135° point angle. Each bit has a 1/16 in straight shank and spiral flutes, intended for right-hand cutting based on the specified point angle and flute geometry. The set includes a metal drill index case; meets NAS 907 Type B standards.
Key Features:
- Contains 13 drill bits sized from 1/16" to 1/4" by 64ths.
- Jobber length bit design with a drilling depth ratio of 4x diameter.
- Made from high-speed steel for machining applications consistent with the specified bit sizes and intended use.
- P3 split point with a 135° point angle for precise starting and reduced walking.
- Each bit has a 1/16 in straight shank suitable for various drill chucks.
- Spiral flute design for chip removal during cutting operations.
- Black oxide finish.
- Includes metal drill index case for storage in the included metal drill index case.
- Meets NAS 907 Type B standard for aircraft drill applications.
