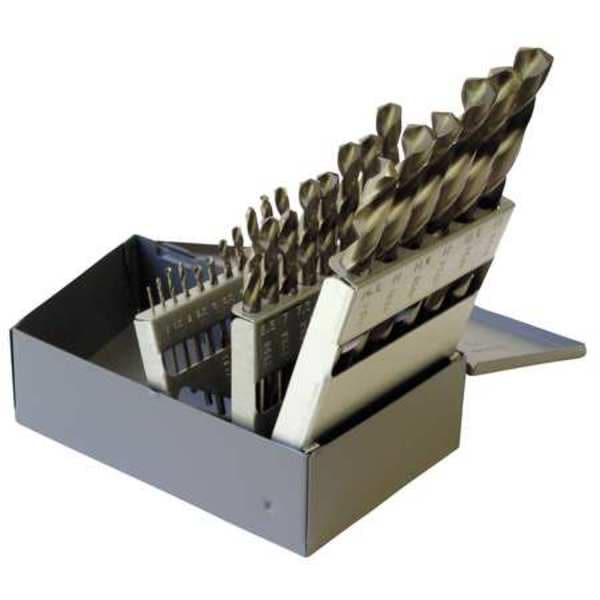

135 Degree Heavy-Duty Cobalt Jobber Length Drill Set Chicago-Latrobe 550ASP Straw HSS-CO 5%-M35 1mm-13mm
Mfr # 47925
Zoro # G3617056
product price:
$
231.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
25
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
Cobalt
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 47925
- Zoro #
- G3617056
- UPC #
- 662355479254
- Country of Origin
- United States
Dimensions
- Drill Bit Dimension Type
- Metric
- Drill Bit Size
- 1 mm to 13 mm by 0.5 mm
- Depth:Dia. Ratio
- 4xD
- Sizes Included
- 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 6.50mm, 7.00mm, 7.50mm, 8.00mm, 8.50mm, 9.00mm, 9.50mm, 10.00mm, 10.50mm, 11.00mm, 11.50mm, 12.00mm, 12.50mm, 13.00mm
- Depth x Dia. Ratio
- 4xD
- Shank Dia.
- 197/5000 in
- Smallest Drill Bit Size
- 1 mm
- Drill Length Class
- Jobber-Length
- Largest Drill Bit Size
- 13 mm
- Drill Bit Sizes Included
- 1 mm, 1.5 mm, 10 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm, 12.5 mm, 13 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm, 9.5 mm
- Overall Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
- Wire Rope Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
- Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
Description
The CHICAGO-LATROBE 47925 is a jobber-length drill bit set featuring 25 cobalt drill bits sized from 1 mm to 13 mm in 0.5 mm increments. These metric drill bits have a split point design with a 135-degree point angle identified as suitable for drilling aluminum, cast iron, stainless steel, and steel. The set is supplied in a metal index case and meets NAS 907 Type B standards. The drill bits have straight shanks with a right-hand spiral direction.
- Material: Cobalt (M42 grade) for made of cobalt (M42 grade).
- Drill bit type: Jobber-length with size range 1 mm to 13 mm in 0.5 mm increments.
- Point type: P3 split point with 135-degree point angle (135°) has a P3 split point design with a 135-degree point angle (135°).
- Number of flutes: 2 spiral flutes with right-hand cutting direction.
- Overall lengths range from approximately 1 11/32 inches to 5 61/64 inches, depending on drill size.
- Includes 25 pieces housed in a metal drill index for organized storage.
- Shank diameter: approximately 0.0394 inch (1/25 in), with straight shanks.
- Primary material codes: K (cast iron), M (stainless steel), N (non-ferrous metals), P (steel).
- Meets aerospace standard NAS 907 Type B standards.
