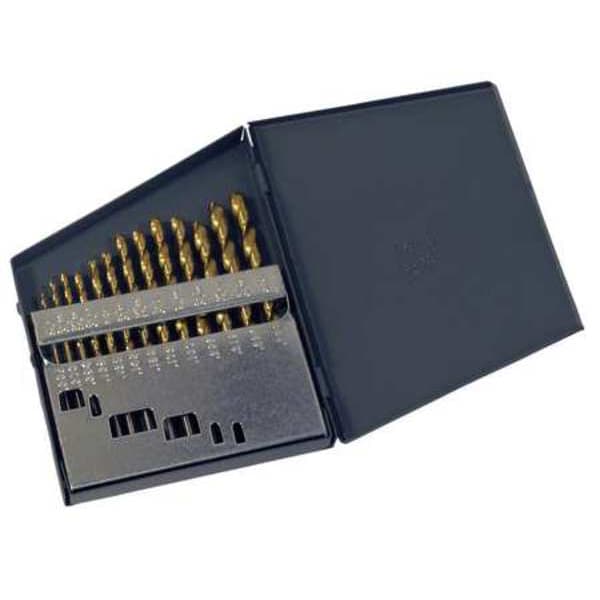

13PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP-TN TiN HSS 1/16-1/4x1/64
- Mfr # 41798
- Zoro # G3734665
Key Features
Specifications
Details
- MFR #
- 41798
- Zoro #
- G3734665
- UPC #
- 662355417980
- Country of Origin
- United States
- Item
- Jobber Length Drill Bit Set
- Number of Pieces
- 13
- Cutting Direction
- Right Hand
- Drill Bit Point Angle
- 135 Degrees
- Drill Bit Material
- High Speed Steel
- Includes
- Metal Drill Index
- Point Type
- P3 Split Point
- Drill Bit Grouping
- Drill Bit Set
- List Number
- 150ASP
- Standards
- NAS 907 Type B
- Primary Material Application
- All Materials
- Shank Type - Machining
- Straight
- Coolant Fed
- Non-Coolant Through
- Aircraft Drill
- Yes
- Finish - Machining
- TiN
- Material - Machining
- High Speed Steel
- Measurement System
- Fractional Inch
- Drill Bit Point Type
- Split Point
- Material Grade - Machining
- Heavy Duty
- Number of Drill Bits
- 13
- Drill Bit Case Type
- Drill Index
- Flute Type
- Spiral
Dimensions
- Drill Bit Dimension Type
- Fractional Inch
- Depth:Dia. Ratio
- 4xD
- Shank Dia.
- 1/16 in
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4"
- Drill Bit Size
- 1/16 in to 1/4 in by 64ths
- Depth x Dia. Ratio
- 4xD
- Largest Drill Bit Size
- 1/4 in
- Drill Length Class
- Jobber-Length
- Smallest Drill Bit Size
- 1/16 in
- Drill Bit Sizes Included
- 1/16 in, 1/4 in, 1/8 in, 11/64 in, 13/64 in, 15/64 in, 3/16 in, 3/32 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/64 in
Description
The CHICAGO-LATROBE 41798 is a jobber-length drill bit set consisting of 13 high-speed steel bits sized fractionally from 1/16 inch to 1/4 inch. These bits have a P3 split point and a 135-degree point angle for drilling applications in materials compatible with high-speed steel (HSS) drill bits. Complies with NAS 907 Type B standard (as specified by the manufacturer). The set comes in a metal drill index for organized storage and includes straight shank bits with a spiral flute design, with a depth-to-diameter ratio of 4x (as specified). The drill bits are made from high-speed steel (HSS) as specified and are finished with titanium nitride (TiN) coating.
Key Features:
- Contains 13 drill bits sized 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", and 1/4".
- High speed steel construction with heavy-duty material grade.
- P3 split point type with a 135° cutting angle.
- Jobber length bit size with a depth-to-diameter ratio of 4x (as specified).
- Straight shank type with a shank diameter starting at 1/16".
- Spiral flute design.
- Comes with a metal drill index case for bit storage and organization.
- Measurement system is fractional inch.
- Complies with NAS 907 Type B standard (as specified).
