15PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP-TN TiN HSS 1/16-1/2x1/32
Mfr # 41797
Zoro # G3637961
Key Features
Specifications
Product Information
- MFR #
- 41797
- Zoro #
- G3637961
- UPC #
- 662355417973
- Country of Origin
- United States
Dimensions
- Depth:Dia. Ratio
- 4xD
- Sizes Included
- 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
- Drill Bit Dimension Type
- Fractional Inch
- Shank Dia.
- 1/6 in
- Drill Bit Size
- 1/16 in to 1/2 in by 32nds
- Depth x Dia. Ratio
- 4xD
- Largest Drill Bit Size
- 1/2 in
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Smallest Drill Bit Size
- 1/16 in
- Drill Length Class
- Jobber-Length
- Overall Length
- 1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
- Wire Rope Length
- 1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Description

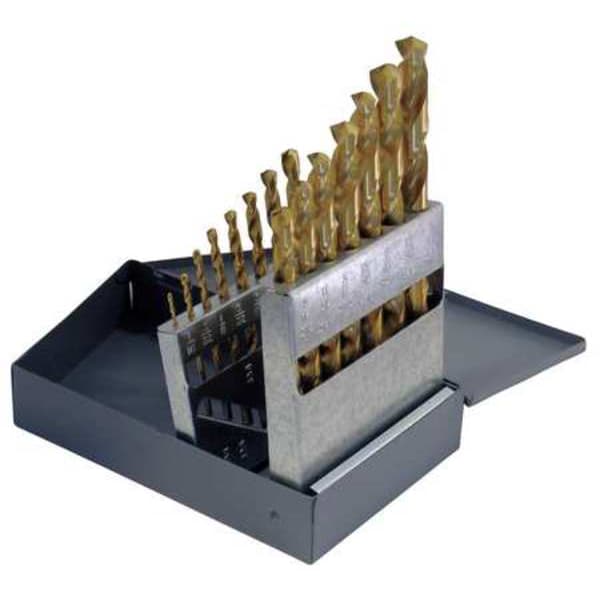

The CHICAGO-LATROBE 41797 Jobber Length Drill Bit Set includes 15 high-speed steel drill bits with sizes ranging from 1/16 inch to 1/2 inch in fractional inch measurements. These drill bits feature a P3 split point design with a 135-degree point angle, intended for use on cast iron, stainless steel, and steel. The bits are manufactured from high-speed steel (heavy-duty machining grade, per manufacturer specifications) and have a TiN finish, has a 4x diameter drilling depth rating (per the manufacturer’s specifications). The set comes in a metal index case and includes pieces with varying overall lengths to accommodate different drilling needs.
Key Features:
- Number of drill bits: 15 pieces ranging from 1/16" to 1/2" in diameter.
- Material: High-speed steel with heavy-duty machining grade and TiN finish.
- Point type: P3 split point with a 135° angle for efficient penetration.
- Shank type: Straight with a diameter of 1/6 inch.
- Flutes: 2 spiral flutes with helix angles between 21° and 34°, right-hand spiral direction.
- Overall lengths vary from 1 7/8 inches to 6 inches, consistent with jobber length classification.
- Conforms to NAS 907 Type B standard; material/ISO suitability: ISO K, M, P (as specified by the manufacturer).
- Includes a metal drill index for organized storage.
