18PC Jobber Drill & Plug Spiral Pt Tap 150D/1011, CL HSS, N36, No 29, No 25, No 21, No 7, F, 5/16, U, 27/64
Mfr # 52581
Zoro # G1930914
Key Features
Specifications
Product Information
- MFR #
- 52581
- Zoro #
- G1930914
- UPC #
- 662355525814
- Country of Origin
- United States
Dimensions
- Drill Sizes
- #21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U
- Tap Sizes
- 6-32, 8-32, 10-24, 10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13
- Size Range
- 1/4-20, 10-24, 10-32, 3/8-16, 5/16-18, 6-32, 7/16-14. 1/2-13, 8-32
- Drill Bit Dimension Type
- Fractional
- Dimensions Standard
- Fractional Inch
- Tap Sizes Included
- #10-24, #10-32, #6-32, #8-32, 1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14
- Largest Thread Size
- 1/2"-13
- Tap Drill Size
- #21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U
- Thread Sizes Included
- #10-24, #10-32, #6-32, #8-32, 1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14
- Smallest Thread Size
- #6-32
- Largest Drill Bit Dia.
- 27/64 in
- Drill Bit Dia. Included
- #21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U
- Smallest Drill Bit Dia.
- #36
- Drill Bit Sizes Included
- #21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U
Description

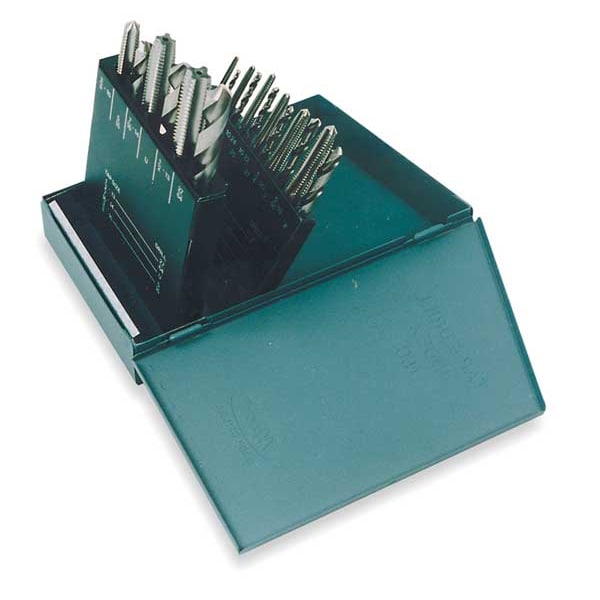

The CHICAGO-LATROBE 52581 is a drill bit and tap set that includes 18 pieces, comprising 9 drill bits and 9 taps. It includes drill bit diameters from #36 to 27/64 inch and tap sizes from #6-32 to 1/2"-13. The set is manufactured from high-speed steel and is intended for use with materials within the manufacturer’s application codes H, K, M, N, O, P, S (with secondary focus on stainless steel, code M). Both drill bits and taps include spiral flutes; drill bits include points, for cutting and threading operations. Produces right-hand threads in sizes and types corresponding to UNC and UNF standards (as applicable to the included tap sizes). The set is made of high-speed steel with bright, uncoated finishes.
Key Features:
- Includes 9 drill bits with sizes ranging from #36 to 5/16 inch and point angles of 118 degrees with split point design.
- Contains 9 spiral point taps with plug chamfer, compatible with thread sizes #6-32 through 1/2"-13 and thread limits of 2B.
- Drill bits and taps are made of high-speed steel with bright (uncoated) finishes.
- Compatible with NC and NF thread types (as applicable to the included tap thread sizes and TPI range 13–32).
- Includes a metal index case.
- Primary material application codes include all materials (H, K, M, N, O, P, S), with a secondary focus on stainless steel (M).
