29PC 135 Degree Heavy-Duty Cobalt Jobber Length Drill Set Chicago-Latrobe 550-TN TiN HSS-CO 1/16-1/2x1/64
Mfr # 69870
Zoro # G3629473
Key Features
Specifications
Product Information
- MFR #
- 69870
- Zoro #
- G3629473
- UPC #
- 662355698709
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Depth:Dia. Ratio
- 4xD
- Drill Bit Dimension Type
- Fractional Inch
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Shank Dia.
- 1/6 in
- Depth x Dia. Ratio
- 4xD
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Largest Drill Bit Size
- 1/2 in
- Drill Length Class
- Jobber-Length
- Smallest Drill Bit Size
- 1/16 in
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Wire Rope Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Description

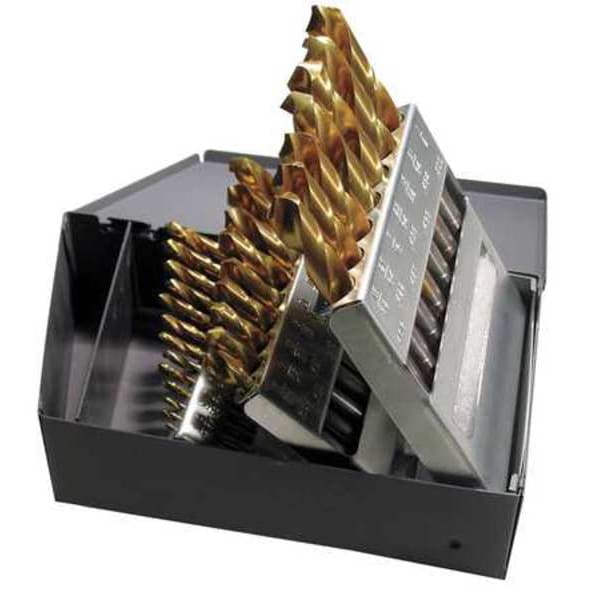

The CHICAGO-LATROBE 69870 is a jobber-length drill bit set consisting of 29 cobalt bits with sizes ranging from 1/16 inch to 1/2 inch in fractional increments. Intended for machining applications; see specifications for applicable material groups and ISO groups. These drill bits feature P3 split points with a 135-degree angle and a right-hand spiral direction. Includes a metal index case. Rated as NAS 907 Type J, Type J straight shank drill bits. Rated as NAS 907 Type J. Compatible with ISO material groups H, K, M, N, P, S (as specified). Overall length: 1 7/8 in to 6 in (by bit size). The set accommodates multiple materials including aluminum, cast iron, hardened steel, stainless steel, steel, and titanium. It includes a metal index case for bit storage and organization. The drill bits have a straight shank diameter of 1/6 inch.
Key Features:
- Material: cobalt (grade as specified).
- Drill bit sizes include incrementals from 1/16" up to 1/2".
- Number of flutes: 2, spiral design with right-hand direction.
- Overall length: 1 7/8 in to 6 in (by bit size).
- Shank type: Straight, shank diameter 1/6 inch.
- Drill length class: Jobber length.
- Finish: Titanium Nitride (TiN) coating.
- Includes a metal index case.
- Rated as NAS 907 Type J.
- Compatible with ISO material groups H, K, M, N, P, S.
