26PC 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150 Steam Oxide HSS A - Z
Mfr # 57718
Zoro # G2992071
Key Features
Specifications
Product Information
- MFR #
- 57718
- Zoro #
- G2992071
- UPC #
- 662355577189
- Country of Origin
- United States
Dimensions
- Sizes Included
- A-Z
- Drill Bit Dimension Type
- Letter
- Depth:Dia. Ratio
- 4xD
- Drill Bit Size
- A to Z
- Depth x Dia. Ratio
- 4xD
- Shank Dia.
- 117/500 in
- Size Range
- A-Z
- Largest Drill Bit Size
- Z
- Drill Bit Sizes Included
- A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z
- Smallest Drill Bit Size
- A
- Drill Length Class
- Jobber-Length
- Overall Length
- 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
- Wire Rope Length
- 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
- Length
- 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
Description

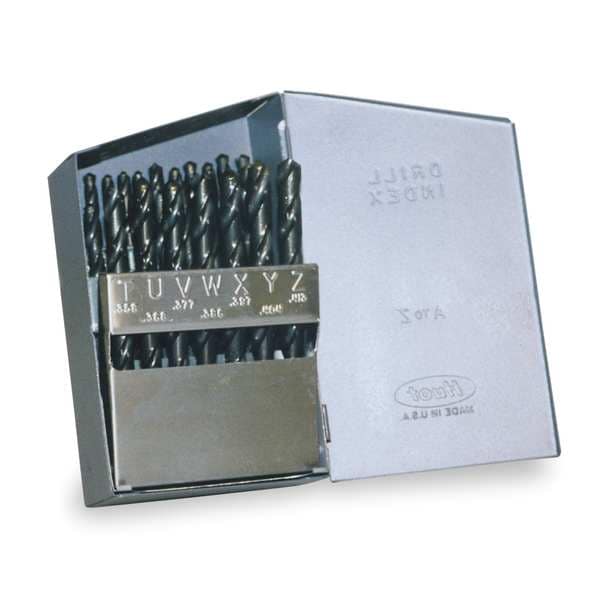

The CHICAGO-LATROBE 57718 Jobber Length Drill Bit Set includes 26 high speed steel bits ranging in size from A to Z, intended for drilling applications using the specified bit material (high speed steel) and within the letter-size range A through Z. Each drill bit features a 118-degree point angle and right-hand spiral flute, recommended for general machining applications. The set provides jobber-length bits with varying overall lengths between 3 7/8 inches and 5 1/4 inches and includes a metal drill index for organization. The drill bits have straight shanks with a diameter of 117/500 inches and conform to ASME B94.11M-1993 standards.
Key Features:
- Contains 26 drill bits covering sizes A through Z in letter measurement.
- Bits manufactured from high speed steel.
- Jobber-length style with overall lengths from 3 7/8 to 5 1/4 inches.
- 118-degree point angle and two-flute spiral design.
- right-hand spiral twist and right-hand cutting direction.
- Straight shank type with a diameter of 117/500 inches for compatibility with standard chucks.
- Includes a metal drill index for bit storage and organization.
- Complies with ASME B94.11M-1993 standard requirements (as stated by the manufacturer)
