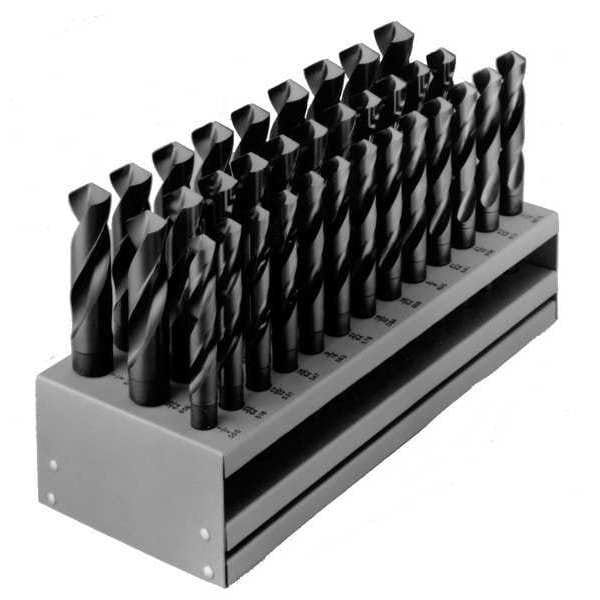

Chicago-Latrobe 33PC 1/2 Reduced Shank Silver & Deming Drill Set Chicago-Latrobe 190F Steam Oxide HSS 1/2-1IN 69848 - main

33PC 1/2 Reduced Shank Silver & Deming Drill Set Chicago-Latrobe 190F Steam Oxide HSS 1/2-1IN

  • Mfr # 69848

  • Zoro # G3619305

product price: $1,222.25
/ea
Free Shipping & Returns

Key Features

Number of Pieces
33
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Index
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
69848
Zoro #
G3619305
UPC #
662355698488
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
4xD
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/2 in to 1 in by 64ths
Shank Dia.
1/2 in
Sizes Included
1/2", 33/64", 17/32", 35/64", 9/16", 37/64", 19/32", 39/64", 5/8", 41/64", 21/32", 43/64", 11/16", 45/64", 23/32", 47/64", 3/4", 49/64", 25/32", 51/64", 13/16", 53/64", 27/32", 55/64", 7/8", 57/64", 29/32", 59/64", 15/16", 61/64", 31/32", 63/64", 1"
Overall Length
6 in
Depth x Dia. Ratio
4xD
Flute Length
3 1/8 in
Largest Drill Bit Size
1 in
Drill Bit Sizes Included
1/2 in, 33/64 in, 17/32 in, 35/64 in, 9/16 in, 37/64 in, 19/32 in, 39/64 in, 5/8 in, 41/64 in, 21/32 in, 43/64 in, 11/16 in, 45/64 in, 23/32 in, 47/64 in, 3/4 in, 49/64 in, 25/32 in, 51/64 in, 13/16 in, 53/64 in, 27/32 in, 55/64 in, 7/8 in, 57/64 in, 29/32 in, 59/64 in, 15/16 in, 61/64 in, 31/32 in, 63/64 in, 1 in
Smallest Drill Bit Size
1/2 in

Details

Item
Reduced Shank Drill Bit Set
Number of Pieces
33
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Index
Shank Type
Round with Flats
Drill Bit Grouping
Drill Bit Set
List Number
190F
Number of Flutes
2
Flute Type
Spiral
Primary Material Application
All Materials
Measurement System
Fractional Inch
Shank Type - Machining
Straight with Three Flats
Drill Bit Point Type
Conventional Point
Coolant Fed
Non-Coolant Through
Finish - Machining
Black Oxide
Number of Drill Bits
33
Material - Machining
High Speed Steel
Material Grade - Machining
General Purpose
Standards
Not Rated
Drill Bit Case Type
Metal Stand
Point Type
General Purpose
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
30 Degrees

Description

Reduced Shank Drill Bit Set, Number of Drill Bits 33, Drill Bit Point Angle 118 Degrees , Material - Machining High Speed Steel, Finish - Machining Black Oxide
