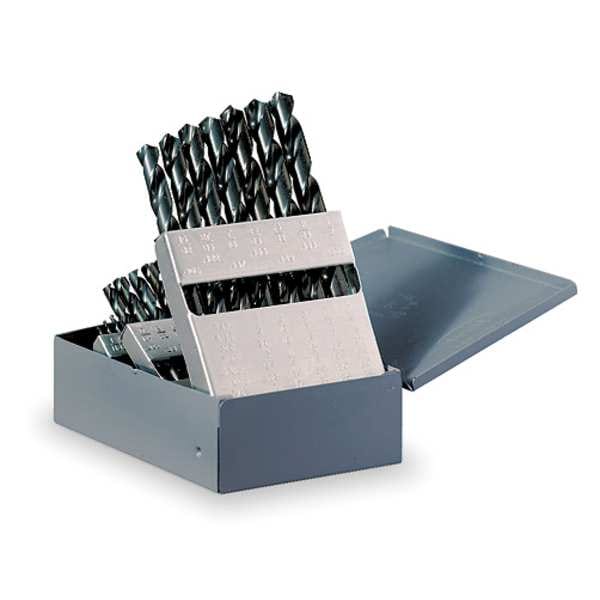

25PC 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150 Steam Oxide HSS 1mm-13mmx.5mm
- Mfr # 57725
- Zoro # G0536164
product price:Â
$
141.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
25
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 57725
- Zoro #
- G0536164
- UPC #
- 662355577257
- Country of Origin
- United States
Dimensions
- Sizes Included
- 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 6.50mm, 7.00mm, 7.50mm, 8.00mm, 8.50mm, 9.00mm, 9.50mm, 10.00mm, 10.50mm, 11.00mm, 11.50mm, 12.00mm, 12.50mm, 13.00mm
- Drill Bit Dimension Type
- Metric
- Depth:Dia. Ratio
- 4xD
- Drill Bit Size
- 1 mm to 13 mm by 0.5 mm
- Shank Dia.
- 197/5000 in
- Depth x Dia. Ratio
- 4xD
- Size Range
- 1mm-13mm
- Largest Drill Bit Size
- 13 mm
- Drill Length Class
- Jobber-Length
- Drill Bit Sizes Included
- 1 mm, 1.5 mm, 10 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm, 12.5 mm, 13 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm, 9.5 mm
- Smallest Drill Bit Size
- 1 mm
- Overall Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
- Wire Rope Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
- Length
- 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
Description
The CHICAGO-LATROBE 57725 is a jobber-length drill bit set consisting of 25 high speed steel bits intended for use in drilling cast iron and steel (as specified by ISO codes K and P). The set includes sizes ranging from 1 mm to 13 mm in metric measurements, with increments of 0.5 mm. Each drill bit features a conventional 118-degree point and a right-hand spiral design, intended for general purpose machining applications. Straight shanks are included and the drill bits meet DIN 338 standards.
Key Features:
- Material: High speed steel, general purpose grade
- Size range: 1.0 mm to 13.0 mm in 0.5 mm increments (25 pieces)
- Point type: Conventional point with 118-degree angle
- Flutes: 2 spiral flutes with a right-hand cutting direction
- Overall length varies from approximately 1 11/32 in to 5 61/64 in depending on size
- Shank type and diameter: Straight shank, nominally 0.197 in diameter
- Drill bit length class: Jobber length
- Finish: Black oxide coating
- Metal index case included for organization and storage
