Shop CHICAGO-LATROBE

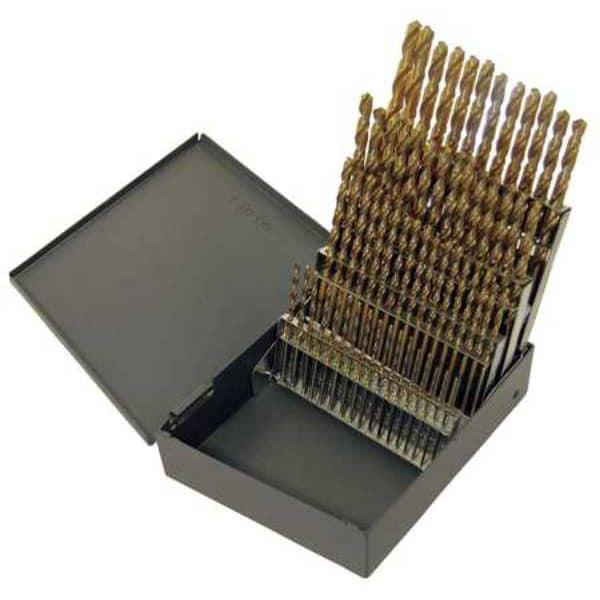

60PC 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150-TN TiN HSS No 1-No 60

  • Mfr # 69863

  • Zoro # G3721767

product price:  $201.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
60
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
69863
Zoro #
G3721767
UPC #
662355698631
Country of Origin
United States

Dimensions

Sizes Included
#60-#1
Drill Bit Size
#60 to #1
Drill Bit Dimension Type
Wire
Depth:Dia. Ratio
4xD
Shank Dia.
1/25 in
Depth x Dia. Ratio
4xD
Drill Length Class
Jobber-Length
Largest Drill Bit Size
#1
Smallest Drill Bit Size
#60
Drill Bit Sizes Included
#1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9
Overall Length
1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
60
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
Point Type
Conventional Point
List Number
150-TN
Standards
ASME B94.11M-1993
Material Grade - Machining
General Purpose
Aircraft Drill
No
Material - Machining
High Speed Steel
Number of Drill Bits
60
Measurement System
Wire
Finish - Machining
TiN
Primary Material Application
Cast Iron, Stainless Steel, Steel
Drill Bit Point Type
Conventional Point
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Drill Bit Case Type
Metal Index
Flute Type
Spiral
Spiral Direction
Right Hand
Number of Flutes
2
Primary Material Application ISO Code
K, M, P
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

The CHICAGO-LATROBE 69863 is a jobber length drill bit set consisting of 60 high speed steel bits intended for use in general drilling applications. The set includes bits for wire gauge sizes #60 through #1, includes multiple diameter sizes spanning #60 through #1 wire gauge. Each bit has a 118-degree point angle and each set includes bits with a right-hand spiral flute. The bits have a TiN (titanium nitride) coating and conform to ASME B94.11M-1993. The set is listed as usable for drilling cast iron, stainless steel, and steel (ISO codes K, M, P), and is suitable for standard drilling applications.

Key Features:

  • Material: High speed steel, general purpose grade.
  • Drill sizes included: Bits for wire gauge sizes #60 through #1.
  • Drill length class: Jobber length, with overall lengths from 1 5/8" up to 3 7/8".
  • Point type: 118-degree point angle for general drilling.
  • Flute configuration: 2-flute spiral with right-hand helix direction.
  • Shank: Straight, 1/25" diameter.
  • Finish: Titanium Nitride (TiN) coating.
  • Included: Metal drill index case.
  • Designed for use on cast iron, stainless steel, and steel (ISO codes K, M, P).
  • Conforms to ASME B94.11M-1993 standards.
