Shop CHICAGO-LATROBE

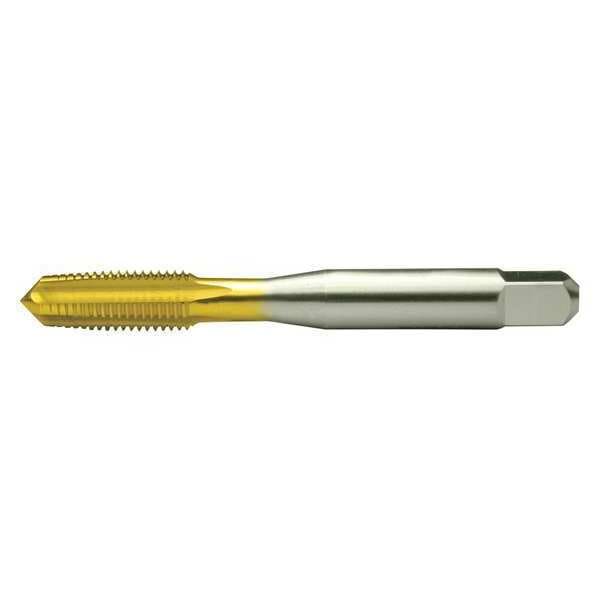

Straight Flute Hand Tap, Taper, 3

  • Mfr # 301052

  • Zoro # G1828193

product price:  $10.29
/ea

Key Features

Shank Dia.
0.141"
Tap Chamfer
Taper
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Size
#5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
301052
Zoro #
G1828193
UPC #
093367010522
Country of Origin
United States

Dimensions

Shank Dia.
0.141"
Tap Dimension Type
Inch
Tap Size
#5
Overall Length
1.937"
Pitch Diameter Limit
H2
Thread Length
5/8"
Tap Thread Size
#5-40
Square Size
0.1100 in
Shank Length
1 5/16 in
65% Thread Drill Size
#37
55% Thread Drill Size
#36
75% Thread Drill Size
#39
Thread Size
#5-40
Tap Length Standard
USCTI
Shank Diameter
0.141 in
Square Length
0.11 in
Square Width
0.11 in

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Taper
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
3
Tap Thread Type
UNC
Number of Pieces
1
Tap Finish
TiN
List Number
HTGP-TN
Standards
USCTI Table 302A
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Threads per Inch
40
Primary Material Application
Cast Iron, Stainless Steel, Steel
Tap Shank Standard
USCTI
Shank Type - Machining
Straight
Measurement System
Pipe
Thread Limit
H2
Primary Material Application ISO Code
K, M, P
Extended Neck
Yes
Spiral Direction
Neutral
Thread Standard
UNC
Series
HTGP-TN
Class of Fit
2B
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Shank Type
Square
Impact Rated
Not Impact Rated

Description

Straight Flute Tap, Thread Size #5-40, UNC, Taper, Overall Length 1.94 in, High Speed Steel, TiN, Right Hand, Thread Length 0.63 in, 75 Percent Thread Drill Size #39, Thread Limit H2, Class of Fit 2B
