  9. 0.68 Inch Air Chipping Hammer, Round Shank, Stroke 2.52 in, Bore Diameter 1.14 in - 1750 BPM
Shop All Air Hammers
Chicago Pneumatic

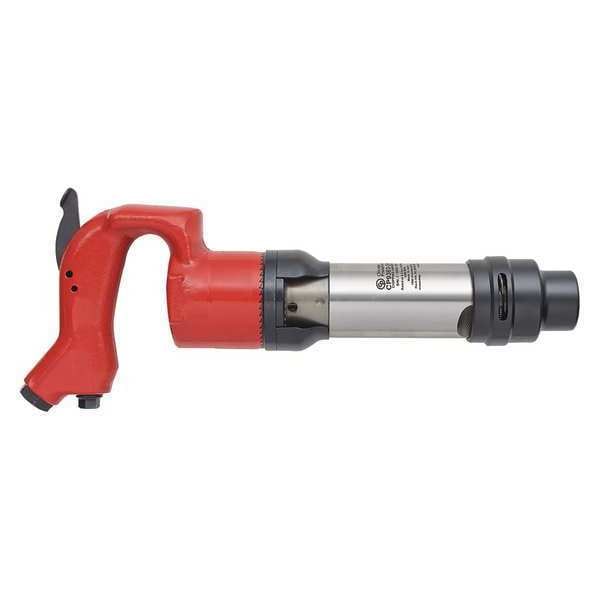

0.68 Inch Air Chipping Hammer, Round Shank, Stroke 2.52 in, Bore Diameter 1.14 in - 1750 BPM

product price: $725.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Blows per Minute 1,750 bpm
  • CFM @ Full Load 32.0
  • Duty Heavy
  • Required Pressure 90 psi
  • Handle Type Gooseneck
See all product information

Product Information

Dimensions

Stroke Length 2.52 in
Overall Length 17 19/64 in
Shank Size 0.68 in
Air Inlet Size 3/8 in NPT
Air Inlet Connection Size 3/8 in
Min. Hose Size 3/8 in

Details

Item Air Chipping Hammer
Blows per Minute 1,750 bpm
CFM @ Full Load 32.0
Duty Heavy
Required Pressure 90 psi
Handle Type Gooseneck
Air Inlet 3/8" NPT
Shank Type Round
Min. Hose 3/8"
Features Easy Chisel Replacement System, Heat Treated Durable Cylinder, Orientable Steel Exhaust Deflector, Secure Grip
Power Source Air Powered
Standards ISO 28927-9
Compatible Collar Shape Oval
Lock-On Switch Yes
Series CP93 Series
Sound Level 114.7 dB
Tool Weight 16.9 lb
Air Consumption 32 cfm
Air Inlet Type NPT
Handle Material Steel
Throttle Type Lever
Number of Pieces 1
Vibration Level 3.1 m/sq sec
Air Pressure 90 psi
Chisel Shank Type Round

Description

Air Chipping Hammer, Stroke Length 2 1/2 in, Air Inlet Size 3/8 in NPT, Blows per Minute 1,750 bpm, Shank Size 0.68 in, Air Inlet Type NPT, Air Inlet Connection Size 3/8 in, Compatible Collar Shape Oval, Power Source Air Powered, Air Consumption 32 cfm, Air Pressure 90 psi, Min. Hose Size 3/8 in, Lock-On Switch Yes
