  9. 1" Pistol Grip Air Impact Wrench 2800 ft.-lb.

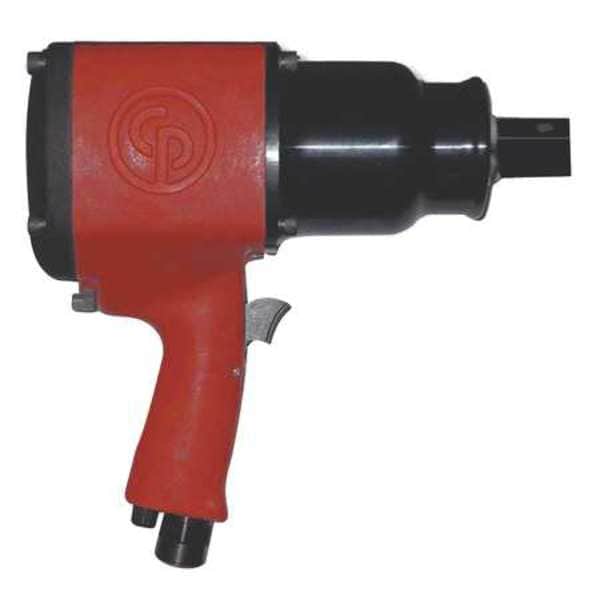

Chicago Pneumatic 1" Pistol Grip Air Impact Wrench 2800 ft.-lb. CP0611PRS - main

1" Pistol Grip Air Impact Wrench 2800 ft.-lb.

  • Mfr # CP0611PRS

  • Zoro # G3597167

product price: $2,817.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1"
Free Speed
3,500 RPM
Air Inlet
1/2 in NPT
Handle Type
Pistol Grip
Features
360 Degrees Adjustable D-Type Side Handle, Compact 3-Part Construction and Easy Maintenance, Hole Type Socket Retainer With O-Ring, Protective and Durable Reverse
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP0611PRS
Zoro #
G3597167
UPC #
015451537739
Country of Origin
Japan

Dimensions

Square Drive Size
1"
Anvil Length - Air Impacts
1.250"
Drive Size - Air Tools
1" Square
Overall Length
10 3/4 in
Min. Hose Size
5/8 in
Air Inlet Size - Air Tools
1/2" NPT
Drive Size
1 in Square

Details

Item
Impact Wrench
Free Speed
3,500 RPM
Air Inlet
1/2 in NPT
Handle Type
Pistol Grip
Features
360 Degrees Adjustable D-Type Side Handle, Compact 3-Part Construction and Easy Maintenance, Hole Type Socket Retainer With O-Ring, Protective and Durable Reverse
Torque Range
900 to 1800 ft.-lb.
Handle Material
Aluminum
Max. Bolt Capacity
1 3/8 in
Duty
Industrial
Duty Cycle - Air Tools
Industrial Duty
Blows per Minute - Air Tools
1020
Average CFM @ 15 Second Run Time
12.00
Anvil
Standard
Retainer Type - Air Impacts
Ring
Max. Torque
2800 ft.-lb.
CFM @ Full Load
48.0
Housing Material
Steel
Anvil Type - Air Impacts
Standard
Item - Air Impact Wrenches
Air Impact Wrench
Retainer Type
Through Hole
Body Style - Air Tools
Pistol
Blows per Minute
1020
Tool Weight
23.1 lb
Required Pressure
90 psi
Style
Pistol Grip
Standards
EN ISO 11148-6:2013, ISO-28927-2
Max. Air Pressure
90 psi
Min. Air Pressure
90 psi
Power Source
Air Powered
Built-In Light
No
Duty Rating
Industrial Duty
Impacts per Minute
1,020
Air Consumption
48 cfm
Air Pressure
90 psi
Tool Style
Compact
Fastening Torque
1,800 ft-lb
Clutch Style
2 Jaw Clutch
Breakaway Torque
2,800 ft-lb
Vibration Level
16.8 m/sq sec
Impact Rated
Yes
Drive Type
Standard
Number of Speed Settings
3
Impact Sound Level
113 dB
Exhaust Location
Bottom
Power to Weight Ratio
121.2 ft-lb/lb

Description

Air Impact Wrench, Power Source Air-Powered, Air Consumption 48 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 5/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 2,800 ft-lb, Fastening Torque 1,800 ft-lb, Free Speed 3,500 RPM, Impact Rated Yes, Impact Sound Level 113 dB, Impacts per Minute 1,020, Number of Speed Settings 3, Power to Weight Ratio 121.2 ft-lb/lb, Max. Bolt Capacity 1 3/8 in
