  9. 1/2" Pistol Grip Air Impact Wrench 700 ft.-lb.
Shop All Air Impact Wrenches
Chicago Pneumatic

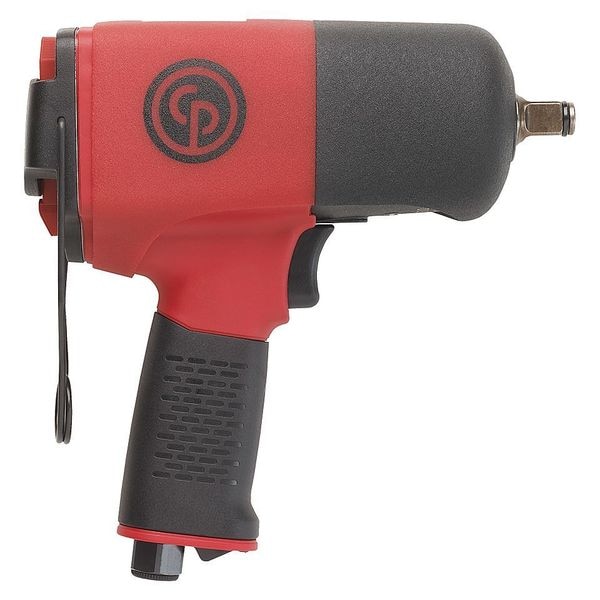

1/2" Pistol Grip Air Impact Wrench 700 ft.-lb.

Hover or click to zoom Tap to zoom
Key Features
  • Air Inlet: 1/4 in NPT
  • Blows per Minute: 1400
  • Duty: Industrial
  • Free Speed: 9,000 RPM
  • Handle Type: Pistol Grip
  • Housing Material: Aluminum
  • Includes: Protective Cover, Suspension Bail
  • Max. Bolt Capacity: 1/2 in
See full product details
$312.39
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Chicago Pneumatic #CP8252-R Specifications

  • Air Inlet: 1/4 in NPT
  • Blows per Minute: 1400
  • Duty: Industrial
  • Free Speed: 9,000 RPM
  • Handle Type: Pistol Grip
  • Housing Material: Aluminum
  • Includes: Protective Cover, Suspension Bail
  • Max. Bolt Capacity: 1/2 in
  • Max. Torque: 700 ft.-lb.
  • Min. Hose Size: 3/8 in
  • Square Drive Size: 1/2"
  • Torque Range: 110 to 553 ft.-lb.
  • Blows per Minute - Air Tools: 1400
  • Anvil: Standard
  • Anvil Type - Air Impacts: Standard
  • CFM @ Full Load: 25.4
  • Item - Air Impact Wrenches: Air Impact Wrench
  • Tool Weight: 4.4 lb
  • Features: Powerful But Easy To Control For Assembly/Disassembly Operations, Progressive Trigger & Rubber Grip
  • Body Style - Air Tools: Pistol
  • Style: Pistol Grip
  • Retainer Type - Air Impacts: Thru Hole
  • Required Pressure: 90 psi
  • Item: Impact Wrench
  • Anvil Length - Air Impacts: 0.750"
  • Duty Cycle - Air Tools: Industrial Duty
  • Retainer Type: Friction Ring
  • Average CFM @ 15 Second Run Time: 6.50
  • Overall Length: 7 7/8 in
  • Handle Material: Composite
  • Drive Size - Air Tools: 1/2" Square
  • Air Inlet Size - Air Tools: 1/4" NPT
  • Tool Style: Compact
  • Vibration Level: 8.8 m/sq sec
  • Duty Rating: Industrial Duty
  • Clutch Style: Twin Hammer
  • Drive Type: Standard
  • Air Pressure: 90 psi
  • Number of Speed Settings: 3
  • Drive Size: 1/2 in Square
  • Power to Weight Ratio: 159.1 ft-lb/lb
  • Fastening Torque: 553 ft-lb
  • Exhaust Location: Bottom
  • Standards: EN ISO 11148-6:2013, ISO-28927-2
  • Max. Air Pressure: 90 psi
  • Min. Air Pressure: 90 psi
  • Built-In Light: No
  • Impact Rated: Yes
  • Breakaway Torque: 700 ft-lb
  • Impact Sound Level: 105 dB
  • Impacts per Minute: 1,400
  • Power Source: Air Powered
  • Air Consumption: 25 cfm
  • Country of Origin (subject to change): Taiwan, Province of China

Description

Impact Wrench, Power Source Air Powered, Air Consumption 25 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 700 ft-lb, Fastening Torque 553 ft-lb, Free Speed 9,000 RPM, Impact Rated Yes, Impact Sound Level 105 dB, Impacts per Minute 1,400, Number of Speed Settings 3, Power to Weight Ratio 159.1 ft-lb/lb, Max. Bolt Capacity 1/2 in
