  9. 1/2" Pistol Air Drill 500 rpm

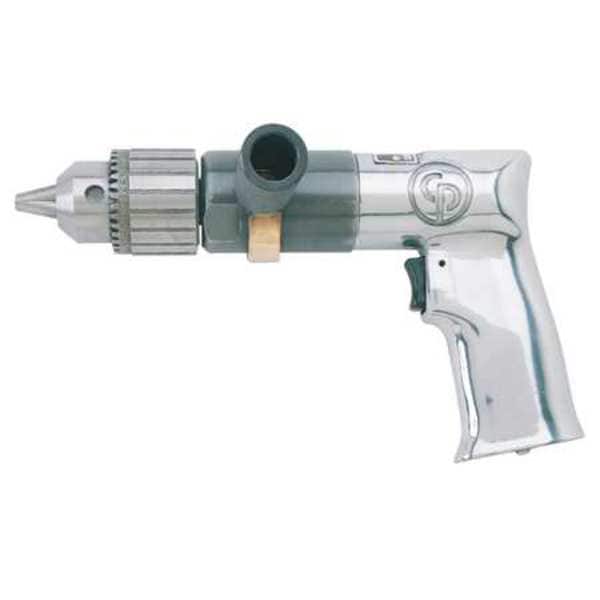

Chicago Pneumatic 1/2" Pistol Air Drill 500 rpm CP785H - main

1/2" Pistol Air Drill 500 rpm

  • Mfr # CP785H

  • Zoro # G3677423

product price: $290.42
/ea
Free Shipping & Returns

Key Features

HP
0.50
HP - Air Tools
0.50
Chuck Size - Air Drills
1/2 in
CFM @ Full Load
16.5
Air Inlet
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP785H
Zoro #
G3677423
UPC #
015451400187
Country of Origin
Japan

Dimensions

Chuck Size - Air Drills
1/2 in
Min. Hose Size
3/8 in
Overall Length
7 3/4 in
Chuck Size
1/2 in
Air Inlet Size - Air Tools
1/4 in NPT
Overall Width
9 3/4 in
Overall Height
9 3/4 in
Spindle Thread Size
3/8"-24

Details

Item
Drill
HP
0.50
HP - Air Tools
0.50
CFM @ Full Load
16.5
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyed
Reversing
No
Required Pressure
90 psi
Free Speed
500 RPM
Duty Cycle - Air Tools
General Duty
Torque
2.82 to 11.3 ft-lb
Item - Air Drills
Air Drill
Duty
General
Average CFM @ 15 Second Run Time
4.10
Body Style - Air Tools
Pistol
Includes
Chuck Key
Housing Material
Aluminum
Drill Chuck Type
Keyed
Throttle Type
Trigger
Style
Pistol
Variable Speed
Yes
Gear Train
2-Step Planetary
Bearings
Ball
Tool Weight
3 lb
Handle Material
Aluminum
Handle Type
Pistol Grip
Application
Drilling, Reaming Holes
Max. Torque
11.3 ft-lb
Vibration Level
2.5 m/sq sec
Drilling Capacity in Cast Iron
1/2 in
Horsepower
0.4 hp
Torque Range
0 ft-lb to 11.3 ft-lb
Air Consumption
31.7 cfm
Exhaust Location
Handle
Bearing Design
Ball
Power Source
Air-Powered
Drilling Capacity in Wood
3/8 in
Duty Rating
Industrial Duty
Noise Level
96 dB
Air Pressure
90 psi
Min. Torque
0 ft-lb
Reversible
No
Chuck Material
Metal

Description

Air-Powered Drill, Pistol Body Style - Air Tools, Free Speed 500 RPM, Torque 2.82 to 11.3 ft-lb, Average CFM @ 15 Second Run Time 4.10, CFM @ Full Load 16.5, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Aluminum, Gear Train 2-Step Planetary, Overall Length 7 3/4 in, Tool Weight 3 lb
