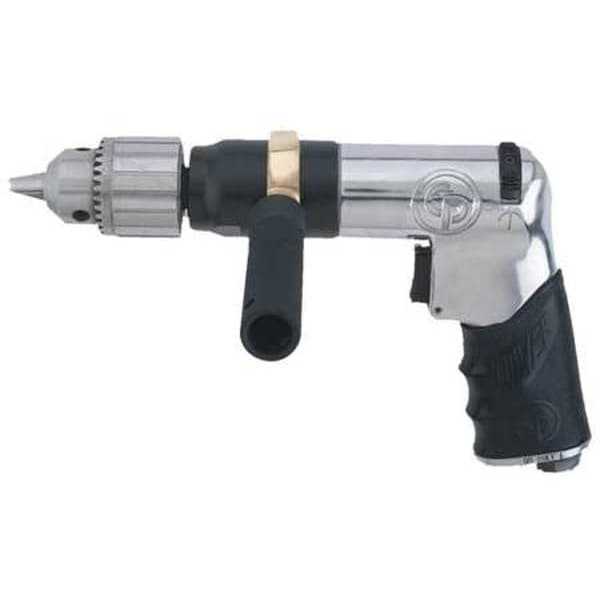

Chicago Pneumatic 1/2" Reversible Pistol Air Drill 500 rpm CP789HR - main

1/2" Reversible Pistol Air Drill 500 rpm

  • Mfr # CP789HR

  • Zoro # G3684082

product price: $376.99
/ea
Free Shipping & Returns

Key Features

HP
0.40
HP - Air Tools
0.40
Chuck Size - Air Drills
1/2 in
CFM @ Full Load
30.0
Air Inlet
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP789HR
Zoro #
G3684082
UPC #
015451519889
Country of Origin
Japan

Dimensions

Chuck Size - Air Drills
1/2 in
Min. Hose Size
3/8 in
Overall Length
8 in
Air Inlet Size - Air Tools
1/4 in NPT
Chuck Size
1/2 in
Overall Height
8 in
Overall Width
8 in
Spindle Thread Size
3/8"-24

Details

Item
Drill
HP
0.40
HP - Air Tools
0.40
CFM @ Full Load
30.0
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyed
Reversing
Yes
Required Pressure
90 psi
Free Speed
500 RPM
Duty Cycle - Air Tools
Industrial Duty
Torque
3.90 to 15.60 ft-lb
Handle Material
Aluminum
Gear Train
2-Step Planetary
Item - Air Drills
Air Drill
Variable Speed
Yes
Average CFM @ 15 Second Run Time
7.50
Duty
Industrial
Style
Pistol
Housing Material
Aluminum
Throttle Type
Trigger
Tool Weight
3.3 lb
Includes
Chuck Key
Bearings
Ball
Drill Chuck Type
Keyed
Body Style - Air Tools
Pistol
Handle Type
Pistol Grip
Application
Drilling, Reaming Holes
Air Pressure
90 psi
Drilling Capacity in Cast Iron
1/2 in
Exhaust Location
Handle
Bearing Design
Ball
Power Source
Air-Powered
Torque Range
0 ft-lb to 15.6 ft-lb
Duty Rating
Industrial Duty
Vibration Level
2.5 m/sq sec
Drilling Capacity in Steel
1/2 in
Horsepower
0.4 hp
Air Consumption
30 cfm
Noise Level
99 dB
Min. Torque
0 ft-lb
Reversible
Yes
Chuck Material
Metal
Max. Torque
15.6 ft-lb

Description

Air-Powered Drill, Reversing Yes, Pistol Body Style - Air Tools, Free Speed 500 RPM, Torque 3.90 to 15.60 ft-lb, Average CFM @ 15 Second Run Time 7.50, CFM @ Full Load 30.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Aluminum, Gear Train 2-Step Planetary, Overall Length 8 in, Tool Weight 3.3 lb
