Chicago Pneumatic

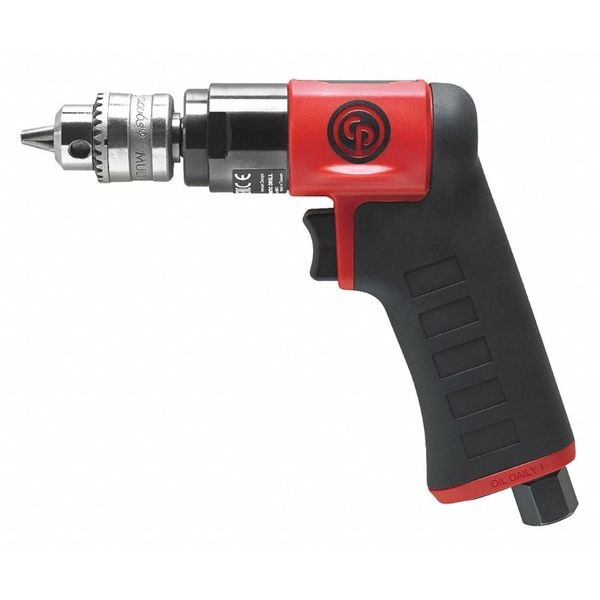

1/4" Pistol Air Drill 3300 rpm

product price: $144.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 0.30
  • HP - Air Tools 0.30
  • Chuck Size - Air Drills 1/4 in
  • CFM @ Full Load 21.2
  • Air Inlet 1/4 in
See all product information

Product Information

Dimensions

Chuck Size - Air Drills 1/4 in
Min. Hose Size 3/8 in
Overall Length 6 3/4 in
Chuck Size 1/4 in
Air Inlet Size - Air Tools 1/4 in NPT
Overall Height 5 3/4 in
Overall Width 1 1/2 in
Spindle Thread Size 3/8"-24

Details

Item Drill
HP 0.30
HP - Air Tools 0.30
CFM @ Full Load 21.2
Air Inlet 1/4 in
Drill Chuck Type - Air Drills Keyed
Reversing No
Required Pressure 90 psi
Free Speed 3,300 RPM
Duty Cycle - Air Tools General Duty
Torque 1.90 ft-lb
Gear Train Planetary
Housing Material Composite
Style Pistol
Variable Speed Yes
Tool Weight 1.4 lb
Duty General
Body Style - Air Tools Pistol
Item - Air Drills Air Drill
Handle Material Rubber
Average CFM @ 15 Second Run Time 5.30
Bearings Ball
Includes Chuck Key, Jacobs Chuck
Throttle Type Trigger
Drill Chuck Type Keyed
Handle Type Pistol Grip
Max. Torque 1.9 ft-lb
Horsepower 0.3 hp
Air Pressure 90 psi
Reversible No
Air Consumption 21.2 cfm
Min. Torque 0 ft-lb
Duty Rating Industrial Duty
Torque Range 0 ft-lb to 1.9 ft-lb
Chuck Material Metal
Noise Level 85 dB
Application Drilling, Reaming Holes
Bearing Design Ball
Exhaust Location Handle
Vibration Level 2.5 m/sq sec
Power Source Air-Powered
Side to Center 1 1/2 in

Description

Drill, Pistol Body Style - Air Tools, Free Speed 3,300 RPM, Torque 1.90 ft-lb, Average CFM @ 15 Second Run Time 5.30, CFM @ Full Load 21.2, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Rubber, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite, Gear Train Planetary, Overall Length 6 3/4 in, Tool Weight 1.4 lb
