  9. 1/4" Pistol Air Drill 4500 rpm

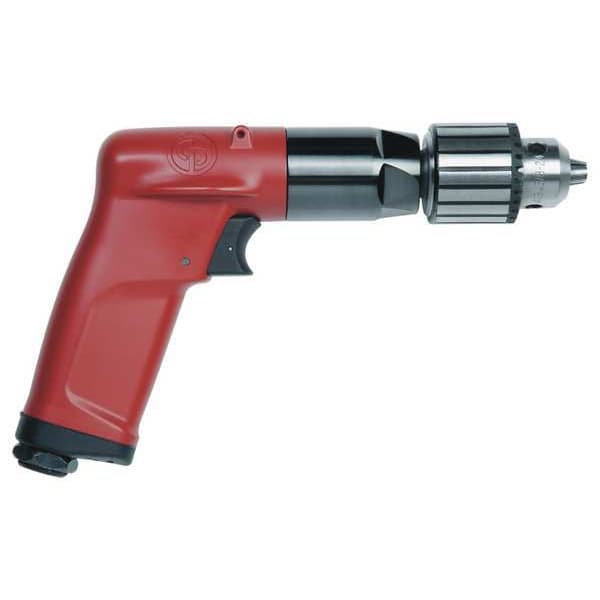

Chicago Pneumatic 1/4" Pistol Air Drill 4500 rpm CP1014P45 - main

1/4" Pistol Air Drill 4500 rpm

  • Mfr # CP1014P45

  • Zoro # G6785317

product price: $462.99
/ea
Free Shipping & Returns

Key Features

HP
0.50
HP - Air Tools
0.50
Chuck Size - Air Drills
1/4 in
CFM @ Full Load
21.0
Air Inlet
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP1014P45
Zoro #
G6785317
UPC #
015451695330
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size - Air Drills
1/4 in
Min. Hose Size
3/8 in
Overall Length
6 3/4 in
Chuck Size
1/4 in
Air Inlet Size - Air Tools
1/4 in NPT
Overall Height
6 7/8 in
Overall Width
3 1/8 in
Spindle Thread Size
3/8"-24

Details

Item
Drill
HP
0.50
HP - Air Tools
0.50
CFM @ Full Load
21.0
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyed
Reversing
No
Required Pressure
90 psi
Free Speed
4,500 RPM
Duty Cycle - Air Tools
Industrial Duty
Torque
0.60 to 2.40 ft-lb
Item - Air Drills
Air Drill
Average CFM @ 15 Second Run Time
5.30
Tool Weight
1.2 lb
Duty
Industrial
Throttle Type
Trigger
Body Style - Air Tools
Pistol
Style
Pistol
Housing Material
Aluminum
Bearings
Ball Bearing
Drill Chuck Type
Keyed
Handle Material
Aluminum
Gear Train
Planetary
Includes
Chuck Key
Variable Speed
Yes
Handle Type
Pistol Grip
Application
Drilling, Reaming Holes
Drilling Capacity in Wood
1/4 in
Drilling Capacity in Steel
1/8 in
Power Source
Air-Powered
Bearing Design
Ball
Vibration Level
2.5 m/sq sec
Noise Level
78 dB
Chuck Material
Metal
Air Consumption
21.2 cfm
Reversible
No
Max. Torque
2.4 ft-lb
Exhaust Location
Handle
Drilling Capacity in Aluminum
1/4 in
Air Pressure
90 psi
Duty Rating
Industrial Duty
Min. Torque
0 ft-lb
Horsepower
0.5 hp
Torque Range
0 ft-lb to 2.4 ft-lb
Drilling Capacity in Cast Iron
1/8 in

Description

Air-Powered Drill, HP - Air Tools 0.50, Chuck Size - Air Drills 1/4 in, Drill Chuck Type - Air Drills Keyed, Reversing No, Pistol Body Style - Air Tools, Free Speed 4,500 RPM, Industrial Duty Duty Cycle - Air Tools, Torque 0.60 to 2.40 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 5.30, CFM @ Full Load 21.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Bearings Ball Bearing
