Shop CHICAGO PNEUMATIC

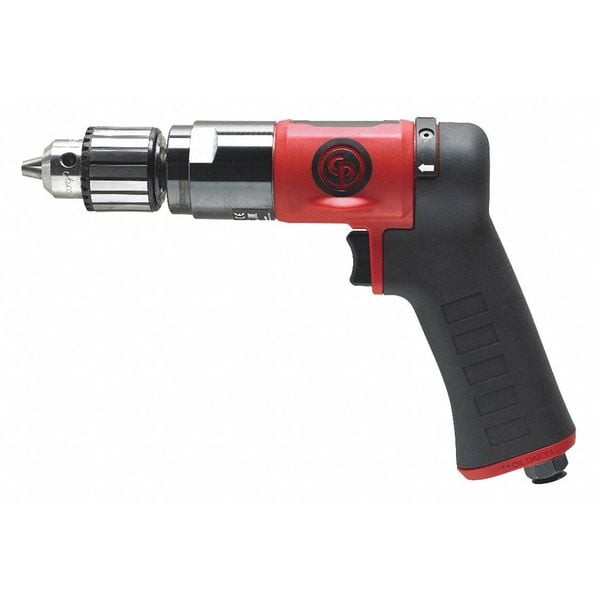

3/8" Reversible Pistol Air Drill 2100 rpm

  • Mfr # CP9790C

  • Zoro # G5221498

product price:
$
182.99
/ea
Free Shipping & Returns

Key Features

HP
0.50
HP - Air Tools
0.50
Chuck Size - Air Drills
3/8 in
CFM @ Full Load
27.6
Air Inlet
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP9790C
Zoro #
G5221498
UPC #
015451777463
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size - Air Drills
3/8 in
Min. Hose Size
3/8 in
Overall Length
9 1/4 in
Air Inlet Size - Air Tools
1/4 in NPT
Chuck Size
3/8 in
Spindle Thread Size
3/8"-24
Overall Width
1 7/8 in
Overall Height
6 in
Hose Size - Minimum
3/8 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
9 1/4 in
Length
9 1/4 in

Details

Item
Air-Powered Drill
HP
0.50
HP - Air Tools
0.50
CFM @ Full Load
27.6
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyed
Reversing
Yes
Required Pressure
90 psi
Free Speed
2,100 RPM
Duty Cycle - Air Tools
General Duty
Torque
4.10 ft-lb
Bearings
Ball
Body Style - Air Tools
Pistol
Item - Air Drills
Air Drill
Housing Material
Composite
Includes
Chuck Key, Jacobs Chuck
Gear Train
Planetary
Throttle Type
Trigger
Duty
General
Tool Weight
2.4 lb
Variable Speed
Yes
Handle Material
Rubber
Style
Pistol
Average CFM @ 15 Second Run Time
6.90
Drill Chuck Type
Keyed
Handle Type
Pistol-Grip
Duty Rating
Industrial Duty
Drilling Capacity in Cast Iron
0 in
Horsepower
0.5 hp
Application
Drilling, Reaming Holes
Drilling Capacity in Aluminum
0 in
Vibration Level
2.5 m/sq sec
Chuck Material
Metal
Drilling Capacity in Wood
0 in
Noise Level
88 dB
Exhaust Location
Handle
Power Source
Air-Powered
Drilling Capacity in Steel
0 in
Max. Torque
3.5 ft-lb
Reversible
Yes
Air Consumption
28 cfm
Torque Range
0 ft-lb to 3.5 ft-lb
Side to Center
2 in
Bearing Design
Ball
Min. Torque
0 ft-lb
Air Pressure
90 psi
Tool Life
Long Lasting
Frequency of Use
Frequent Maintenance to Heavy Production
Torque - Minimum
0 ft-lb
Air Inlet Type
NPT
Torque - Maximum
4 ft-lb
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Air-Powered Drill, Reversing Yes, Pistol Body Style - Air Tools, Free Speed 2,100 RPM, Torque 4.10 ft-lb, Average CFM @ 15 Second Run Time 6.90, CFM @ Full Load 27.6, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Rubber, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite, Gear Train Planetary, Overall Length 9 1/4 in, Tool Weight 2.4 lb
