Shop CHICAGO PNEUMATIC

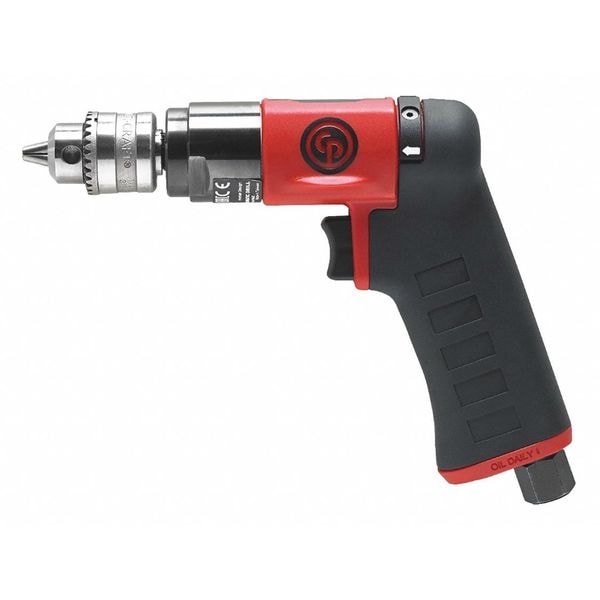

1/4" Reversible Pistol Air Drill 2800 rpm

  • Mfr # CP7300RC

  • Zoro # G5204908

product price:
$
202.99
/ea
Free Shipping & Returns

Key Features

HP
0.30
HP - Air Tools
0.30
Chuck Size - Air Drills
1/4 in
CFM @ Full Load
21.2
Air Inlet
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP7300RC
Zoro #
G5204908
UPC #
015451777425
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size - Air Drills
1/4 in
Min. Hose Size
3/8 in
Overall Length
7 1/4 in
Chuck Size
1/4 in
Air Inlet Size - Air Tools
1/4 in NPT
Spindle Thread Size
3/8"-24
Overall Height
5 3/4 in
Overall Width
1 1/2 in
Air Inlet Connection Size
1/4 in
Hose Size - Minimum
3/8 in
Wire Rope Length
7 1/4 in
Length
7 1/4 in

Details

Item
Air-Powered Drill
HP
0.30
HP - Air Tools
0.30
CFM @ Full Load
21.2
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyed
Reversing
Yes
Required Pressure
90 psi
Free Speed
2,800 RPM
Duty Cycle - Air Tools
General Duty
Torque
1.90 ft-lb
Body Style - Air Tools
Pistol
Tool Weight
1.5 lb
Throttle Type
Trigger
Gear Train
Planetary
Includes
Chuck Key, Jacobs Chuck
Average CFM @ 15 Second Run Time
5.30
Style
Pistol
Bearings
Ball
Handle Material
Rubber
Variable Speed
Yes
Housing Material
Composite
Duty
General
Item - Air Drills
Air Drill
Drill Chuck Type
Keyed
Handle Type
Pistol-Grip
Bearing Design
Ball
Drilling Capacity in Aluminum
0 in
Exhaust Location
Handle
Min. Torque
0 ft-lb
Drilling Capacity in Steel
0 in
Application
Drilling, Reaming Holes
Power Source
Air-Powered
Noise Level
82 dB
Air Pressure
90 psi
Side to Center
1 1/2 in
Max. Torque
1.9 ft-lb
Vibration Level
2.5 m/sq sec
Chuck Material
Metal
Horsepower
0.3 hp
Drilling Capacity in Cast Iron
0 in
Air Consumption
21 cfm
Reversible
Yes
Duty Rating
Industrial Duty
Torque Range
0 ft-lb to 1.9 ft-lb
Torque - Maximum
2 ft-lb
Torque - Minimum
0 ft-lb
Tool Life
Long Lasting
Air Inlet Type
NPT
Frequency of Use
Frequent Maintenance to Heavy Production
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Air-Powered Drill, HP - Air Tools 0.30, Chuck Size - Air Drills 1/4 in, Drill Chuck Type - Air Drills Keyed, Reversing Yes, Pistol Body Style - Air Tools, Free Speed 2,800 RPM, General Duty Duty Cycle - Air Tools, Torque 1.90 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 5.30, CFM @ Full Load 21.2, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Rubber, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite
