  9. 3/8" Pistol Air Drill 3000 rpm

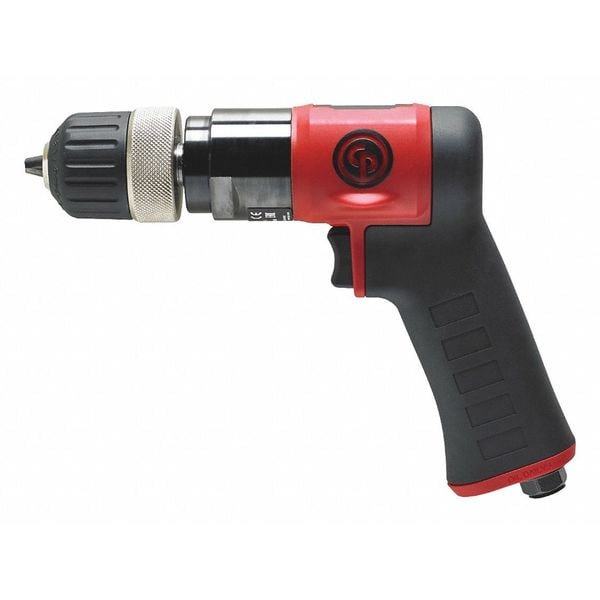

Chicago Pneumatic 3/8" Pistol Air Drill 3000 rpm CP9287C - main

3/8" Pistol Air Drill 3000 rpm

  • Mfr # CP9287C

  • Zoro # G5271417

product price: $172.99
/ea
Free Shipping & Returns

Key Features

HP
0.60
HP - Air Tools
0.60
Chuck Size - Air Drills
3/8 in
CFM @ Full Load
27.6
Air Inlet
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP9287C
Zoro #
G5271417
UPC #
015451777456
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size - Air Drills
3/8 in
Min. Hose Size
3/8 in
Overall Length
8 1/4 in
Chuck Size
3/8 in
Air Inlet Size - Air Tools
1/4 in NPT
Overall Height
6 in
Overall Width
2 in
Spindle Thread Size
3/8"-24

Details

Item
Drill
HP
0.60
HP - Air Tools
0.60
CFM @ Full Load
27.6
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyless
Reversing
No
Required Pressure
90 psi
Free Speed
3,000 RPM
Duty Cycle - Air Tools
General Duty
Torque
4.10 ft-lb
Housing Material
Composite
Throttle Type
Trigger
Body Style - Air Tools
Pistol
Style
Pistol
Item - Air Drills
Air Drill
Average CFM @ 15 Second Run Time
6.90
Bearings
Ball
Gear Train
Planetary
Variable Speed
Yes
Includes
Jacobs Chuck
Duty
General
Tool Weight
2.4 lb
Handle Material
Rubber
Drill Chuck Type
Keyless
Handle Type
Pistol Grip
Noise Level
83 7/10 dB
Duty Rating
Industrial Duty
Application
Drilling, Reaming Holes
Exhaust Location
Handle
Horsepower
0.6 hp
Side to Center
2 in
Air Consumption
27.5 cfm
Bearing Design
Ball
Power Source
Air-Powered
Air Pressure
90 psi
Max. Torque
4.1 ft-lb
Chuck Material
Metal/Plastic
Min. Torque
0 ft-lb
Vibration Level
2.5 m/sq sec
Torque Range
0 ft-lb to 4.1 ft-lb
Reversible
No

Description

Air-Powered Drill, Pistol Body Style - Air Tools, Free Speed 3,000 RPM, Torque 4.10 ft-lb, Average CFM @ 15 Second Run Time 6.90, CFM @ Full Load 27.6, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Rubber, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite, Gear Train Planetary, Overall Length 8 1/4 in, Tool Weight 2.4 lb
