  9. 3/8" Pistol Air Drill 3000 rpm
Shop All Air Drills
Chicago Pneumatic

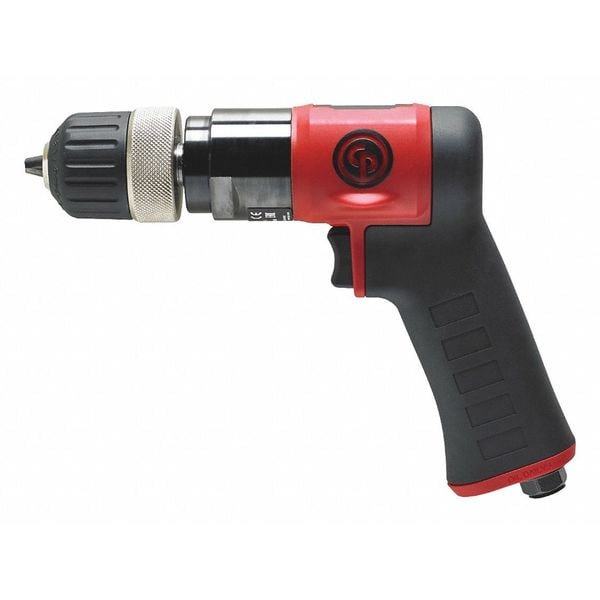

3/8" Pistol Air Drill 3000 rpm

product price: $155.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 0.60
  • HP - Air Tools 0.60
  • Chuck Size - Air Drills 3/8 in
  • CFM @ Full Load 27.6
  • Air Inlet 1/4 in
See all product information

Product Information

Dimensions

Chuck Size - Air Drills 3/8 in
Min. Hose Size 3/8 in
Overall Length 8 1/4 in
Chuck Size 3/8 in
Air Inlet Size - Air Tools 1/4 in NPT
Overall Height 6 in
Overall Width 2 in
Spindle Thread Size 3/8"-24

Details

Item Drill
HP 0.60
HP - Air Tools 0.60
CFM @ Full Load 27.6
Air Inlet 1/4 in
Drill Chuck Type - Air Drills Keyless
Reversing No
Required Pressure 90 psi
Free Speed 3,000 RPM
Duty Cycle - Air Tools General Duty
Torque 4.10 ft-lb
Housing Material Composite
Throttle Type Trigger
Body Style - Air Tools Pistol
Style Pistol
Item - Air Drills Air Drill
Average CFM @ 15 Second Run Time 6.90
Bearings Ball
Gear Train Planetary
Variable Speed Yes
Includes Jacobs Chuck
Duty General
Tool Weight 2.4 lb
Handle Material Rubber
Drill Chuck Type Keyless
Handle Type Pistol Grip
Noise Level 83 7/10 dB
Duty Rating Industrial Duty
Application Drilling, Reaming Holes
Exhaust Location Handle
Horsepower 0.6 hp
Side to Center 2 in
Air Consumption 27.5 cfm
Bearing Design Ball
Power Source Air-Powered
Air Pressure 90 psi
Max. Torque 4.1 ft-lb
Chuck Material Metal/Plastic
Min. Torque 0 ft-lb
Vibration Level 2.5 m/sq sec
Torque Range 0 ft-lb to 4.1 ft-lb
Reversible No

Description

Drill, Pistol Body Style - Air Tools, Free Speed 3,000 RPM, Torque 4.10 ft-lb, Average CFM @ 15 Second Run Time 6.90, CFM @ Full Load 27.6, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Rubber, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite, Gear Train Planetary, Overall Length 8 1/4 in, Tool Weight 2.4 lb
