  9. 3/8" Pistol Air Drill 500 rpm

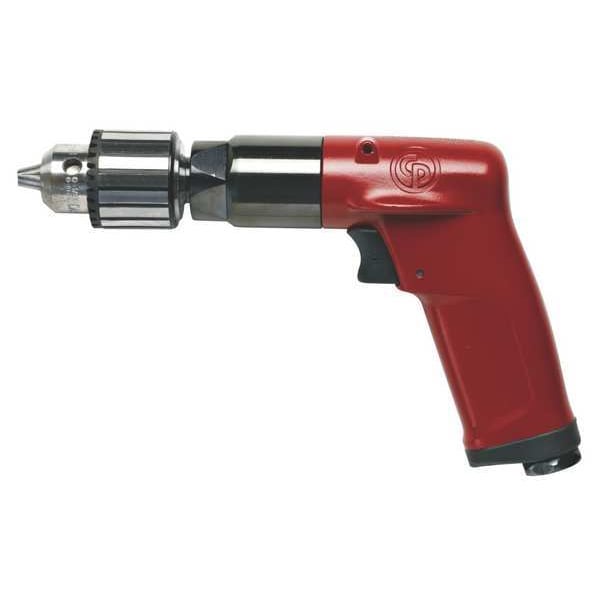

Chicago Pneumatic 3/8" Pistol Air Drill 500 rpm CP1014P05 - main

3/8" Pistol Air Drill 500 rpm

  • Mfr # CP1014P05

  • Zoro # G7044642

product price: $552.99
/ea
Free Shipping & Returns

Key Features

HP
0.50
HP - Air Tools
0.50
Chuck Size - Air Drills
3/8 in
CFM @ Full Load
19.0
Air Inlet
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP1014P05
Zoro #
G7044642
UPC #
015451695408
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size - Air Drills
3/8 in
Min. Hose Size
3/8 in
Overall Length
7 3/4 in
Air Inlet Size - Air Tools
1/4 in NPT
Chuck Size
3/8 in
Overall Width
3 1/8 in
Overall Height
6 7/8 in
Spindle Thread Size
3/8"-24

Details

Item
Drill
HP
0.50
HP - Air Tools
0.50
CFM @ Full Load
19.0
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyed
Reversing
No
Required Pressure
90 psi
Free Speed
500 RPM
Duty Cycle - Air Tools
Industrial Duty
Torque
4.55 to 18.20 ft-lb
Body Style - Air Tools
Pistol
Average CFM @ 15 Second Run Time
4.70
Housing Material
Aluminum
Handle Material
Aluminum
Includes
Chuck Key, Side Handle
Duty
Industrial
Tool Weight
1.4 lb
Drill Chuck Type
Keyed
Bearings
Ball Bearing
Variable Speed
Yes
Item - Air Drills
Air Drill
Gear Train
Planetary
Throttle Type
Trigger
Style
Pistol
Handle Type
Pistol Grip
Application
Drilling, Reaming Holes
Duty Rating
Industrial Duty
Reversible
No
Vibration Level
2.5 m/sq sec
Drilling Capacity in Cast Iron
3/8 in
Min. Torque
0 ft-lb
Air Consumption
19 cfm
Chuck Material
Metal
Drilling Capacity in Steel
3/8 in
Bearing Design
Ball
Noise Level
78 dB
Exhaust Location
Handle
Power Source
Air-Powered
Torque Range
0 ft-lb to 18.2 ft-lb
Max. Torque
18.2 ft-lb
Horsepower
0.5 hp
Air Pressure
90 psi

Description

Air-Powered Drill, HP - Air Tools 0.50, Chuck Size - Air Drills 3/8 in, Drill Chuck Type - Air Drills Keyed, Reversing No, Pistol Body Style - Air Tools, Free Speed 500 RPM, Industrial Duty Duty Cycle - Air Tools, Torque 4.55 to 18.20 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 4.70, CFM @ Full Load 19.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Bearings Ball Bearing
