  9. 3/8" Pistol Grip Air Impact Wrench 180 ft.-lb.

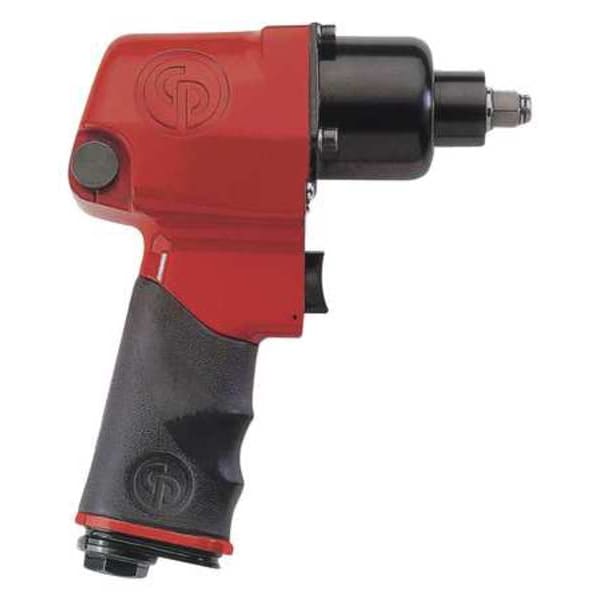

Chicago Pneumatic 3/8" Pistol Grip Air Impact Wrench 180 ft.-lb. CP6300RSR - main

3/8" Pistol Grip Air Impact Wrench 180 ft.-lb.

  • Mfr # CP6300RSR

  • Zoro # G3724682

product price: $379.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
3/8"
Free Speed
6,800 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol Grip
Anvil Type - Air Impacts
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP6300RSR
Zoro #
G3724682
UPC #
015451526504
Country of Origin
Japan

Dimensions

Square Drive Size
3/8"
Anvil Length - Air Impacts
0.050"
Air Inlet Size - Air Tools
1/4" NPT
Min. Hose Size
3/8 in
Drive Size - Air Tools
3/8" Square
Overall Length
6 in
Drive Size
3/8 in Square

Details

Item
Impact Wrench
Free Speed
6,800 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol Grip
Anvil Type - Air Impacts
Standard
CFM @ Full Load
14.0
Retainer Type
Friction Ring
Duty Cycle - Air Tools
Industrial Duty
Required Pressure
90 psi
Anvil
Standard
Blows per Minute
1800
Blows per Minute - Air Tools
1800
Max. Torque
180 ft.-lb.
Max. Bolt Capacity
3/8 in
Torque Range
40 to 150 ft.-lb.
Body Style - Air Tools
Pistol
Duty
Heavy Duty
Handle Material
Aluminum
Average CFM @ 15 Second Run Time
3.50
Item - Air Impact Wrenches
Air Impact Wrench
Housing Material
Steel
Tool Weight
3.5 lb
Retainer Type - Air Impacts
Ring
Style
Pistol Grip
Features
Aluminum Body and Steel Clutch Housing, Perfect Control With A 4-Position Regulator, Rubber Grip and Teasing Trigger
Standards
EN ISO 11148-6:2013, ISO-28927-2
Vibration Level
5.0 m/sq sec
Impact Rated
Yes
Drive Type
Standard
Number of Speed Settings
4
Max. Air Pressure
90 psi
Impact Sound Level
101 dB
Breakaway Torque
180 ft-lb
Air Consumption
14 cfm
Power Source
Air Powered
Min. Air Pressure
90 psi
Air Pressure
90 psi
Impacts per Minute
1,800
Clutch Style
Jumbo Hammer
Fastening Torque
150 ft-lb
Duty Rating
Industrial Duty
Power to Weight Ratio
51.4 ft-lb/lb
Exhaust Location
Bottom
Built-In Light
No
Tool Style
Compact

Description

Impact Wrench, Power Source Air Powered, Air Consumption 14 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 180 ft-lb, Fastening Torque 150 ft-lb, Free Speed 6,800 RPM, Impact Rated Yes, Impact Sound Level 101 dB, Impacts per Minute 1,800, Number of Speed Settings 4, Power to Weight Ratio 51.4 ft-lb/lb, Max. Bolt Capacity 3/8 in
