Shop CHICAGO PNEUMATIC

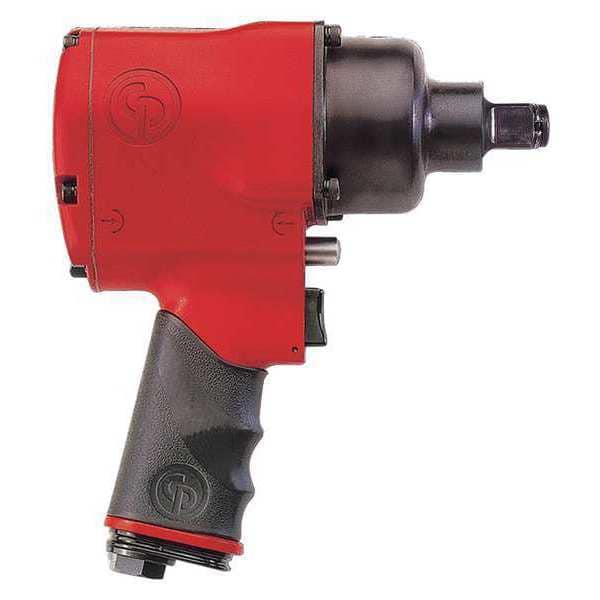

1/2" Pistol Grip Air Impact Wrench 625 ft.-lb.

  • Mfr # CP6500-RSR

  • Zoro # G3296791

product price:
$
476.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1/2"
Free Speed
6,400 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol-Grip
Blows per Minute
1320
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP6500-RSR
Zoro #
G3296791
UPC #
015451526443
Country of Origin
Japan

Dimensions

Square Drive Size
1/2"
Drive Size - Air Tools
1/2" Square
Air Inlet Size - Air Tools
1/4" NPT
Overall Length
7 in
Min. Hose Size
3/8 in
Anvil Length - Air Impacts
0.750"
Drive Size
1/2 in
Hose Size - Minimum
3/8 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
7 in
Length
7 in

Details

Item
Air Impact Wrench
Free Speed
6,400 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol-Grip
Blows per Minute
1320
Retainer Type
Friction Ring
Tool Weight
5.8 lb
CFM @ Full Load
25.0
Handle Material
Aluminum
Item - Air Impact Wrenches
Air Impact Wrench
Features
Comfortable Handle With Rubber Grip, Extremely Robust For Tough Environments, Operator Comfort And Control Even On High Torque
Blows per Minute - Air Tools
1320
Required Pressure
90 psi
Anvil
Standard
Max. Torque
625 ft.-lb.
Body Style - Air Tools
Pistol
Style
Pistol Grip
Average CFM @ 15 Second Run Time
6.00
Torque Range
125 to 502 ft.-lb.
Max. Bolt Capacity
5/8 in
Retainer Type - Air Impacts
Thru Hole
Duty Cycle - Air Tools
Industrial Duty
Anvil Type - Air Impacts
Standard
Duty
Industrial
Housing Material
Steel
Standards
EN ISO 11148-6:2013, ISO-28927-2
Impact Rated
Yes
Breakaway Torque
625 ft-lb
Impact Sound Level
107 dB
Power to Weight Ratio
107.8 ft-lb/lb
Built-In Light
No
Tool Style
Compact
Impacts per Minute
1,320
Air Pressure
90 psi
Max. Air Pressure
90 psi
Air Consumption
25 cfm
Power Source
Air-Powered
Clutch Style
Twin Hammer
Drive Type
Standard
Duty Rating
Industrial Duty
Vibration Level
8 m/sq sec
Number of Speed Settings
4
Exhaust Location
Bottom
Fastening Torque
502 ft-lb
Min. Air Pressure
90 psi
Drive Shape
Square
Frequency of Use
Frequent Maintenance to Heavy Production
Bolt Capacity - Maximum
1 in
Air Pressure - Minimum
90 psi
Air Pressure - Maximum
90 psi
Air Inlet Type
NPT
Tool Life
Ultra Durable
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Impact Wrench, Power Source Air Powered, Air Consumption 25 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 625 ft-lb, Fastening Torque 502 ft-lb, Free Speed 6,400 RPM, Impact Rated Yes, Impact Sound Level 107 dB, Impacts per Minute 1,320, Number of Speed Settings 4, Power to Weight Ratio 107.8 ft-lb/lb, Max. Bolt Capacity 5/8 in
