  11. Air Compressor Pump, 3.5, 5.5, Single Stage Stage, 0.91 qt Oil Capacity, 2 Cylinder
Shop All Air Compressor Pumps
Chicago Pneumatic

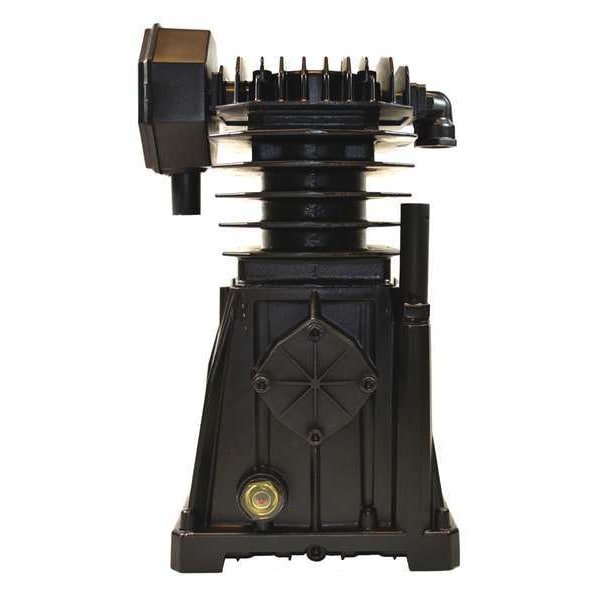

Air Compressor Pump, 3.5, 5.5, Single Stage Stage, 0.91 qt Oil Capacity, 2 Cylinder

product price: $394.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 3.5, 5.5
  • Number of Stages Single Stage
  • Lubrication Type Splash Lubricated
  • Number of Cylinders 2
  • Max. Pressure 130 PSI
See all product information

Product Information

Dimensions

Flywheel Dia. 13 3/4 in
Bore Dia. 2 31/64 in
Sheave Size @ 1725 RPM 8 3/8 in, 9 7/8 in, 11 3/8 in
Stroke Length 2 3/8 in
Overall Height 14.25 in
Overall Width 13 in
Overall Depth 11 in
Sheave Size @ 3450 rpm 4 3/4 in
Flywheel Diameter 13 3/4 in
Bore Diameter 2.48 in
Outlet Size 0.62 in

Details

Item Air Compressor Pump
HP 3.5, 5.5
Number of Stages Single Stage
Lubrication Type Splash Lubricated
Number of Cylinders 2
Max. Pressure 130 PSI
Free Air CFM @ Max. Pressure 11.1
Pump RPM 1250
NPT Outlet 5/8 in
Groove Quantity 1
Oil Capacity 0.91 qt
Valve Type Reed
Rotation CCW
Valve Material Stainless Steel
Finish Matte Black
Avg. Pump Life 10,000 hr
Construction Aluminum, Cast Iron
Mounting Pattern 6-9/64 in W x 5-1/2 in D
Flywheel Included Yes
Groove Section A
Free Air Flow Rate @ Maximum Pressure 11.1 cfm @ 130 psi
Features Variety of Power Levels
Outlet Connection Type NPT
Pump Speed 1,250 RPM
Number of Grooves 1
Maximum Operating Pressure 130 psi
Average Pump Life 10,000 hr
Lubrication Required Yes
Maximum Output Power 5.5 hp

Description

Air Compressor Pump, Lubrication Type Splash Lubricated, Number of Stages 1, Maximum Output Power 5.5 hp, Free Air Flow Rate @ Maximum Pressure 11.1 cfm @ 130 psi, Number of Cylinders 2, Maximum Operating Pressure 130 psi, Flywheel Diameter 13 3/4 in, Flywheel Included Yes, Pump Speed 1,250 RPM, Construction Aluminum, Cast Iron, Groove Section A, Number of Grooves 1, Valve Type Reed, Valve Material Stainless Steel, Rotation CCW, Stroke Length 2 3/8 in
